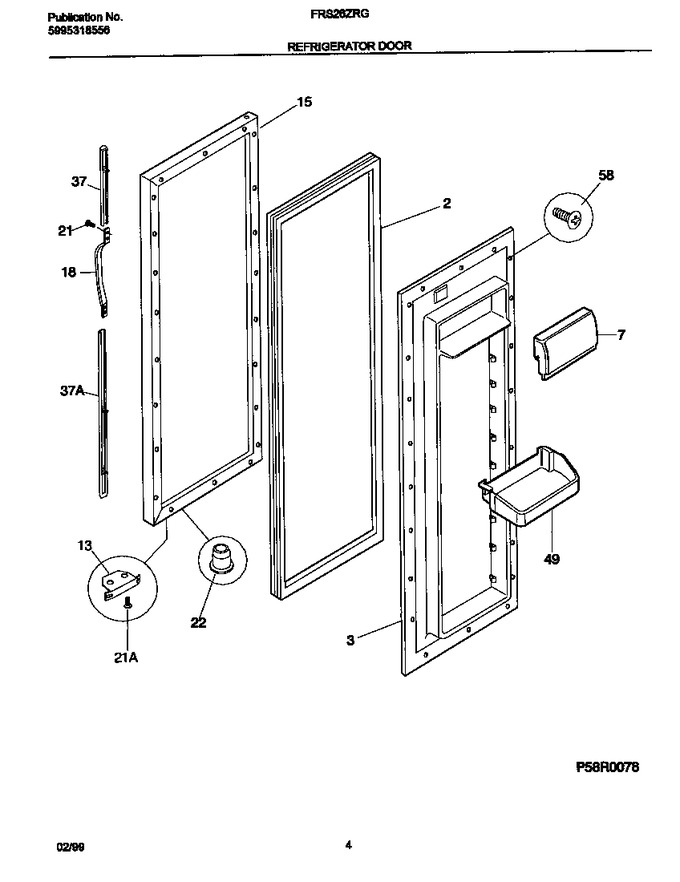

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	215734314		Gasket-refr Door, White, Magnetic				$ 243.34
3	215403201		Panel-inner Door, Refr		Appelez-nous	-
7	5303308608		Door-dairy				$ 196.82
13	5303289522		Door Stop				$ 40.17
15	5303917488		Panel-refr Door, White, W/foam Insulatn		Appelez-nous	-
18	297311201		Handle-door, White   (Replaces: 218762701)			Immediately	$ 80.60
21	218578600		Screw-door Stop Mtg,phl Truss Hd ,				$ 8.08
21	218843801		Screw   (Replaces: 5303001001)				$ 14.41
22	5303289320		Bearing-hinge				$ 19.69
37	215867053		Trim-handle, White, Lower, W/chrome Band				$ 70.72
37	215867055		Trim-handle, White, Upper, W/chrome Band				$ 51.14
49	215398907		Bin-door,gallon				$ 152.30
58	218781101		Screw, Pan Head, 8-18 X 5/8   (Replaces: 218781100)				$ 15.60
*33485	215782300		Lock-handle Trim,snap-in				$ 34.49
*33486	215940700		Lock-handle Trim, Stick-on		Appelez-nous	-
*33487	218676001		Band-decorative,chrome ,handle Trim				$ 36.17
*33488	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91

    View Diagram in Separate Window       Print Part List
