SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door/drawer
04 - Gas Controls
05 - Oven
06 - Top Assembly
SELECT A DIAGRAM
New Model Search:

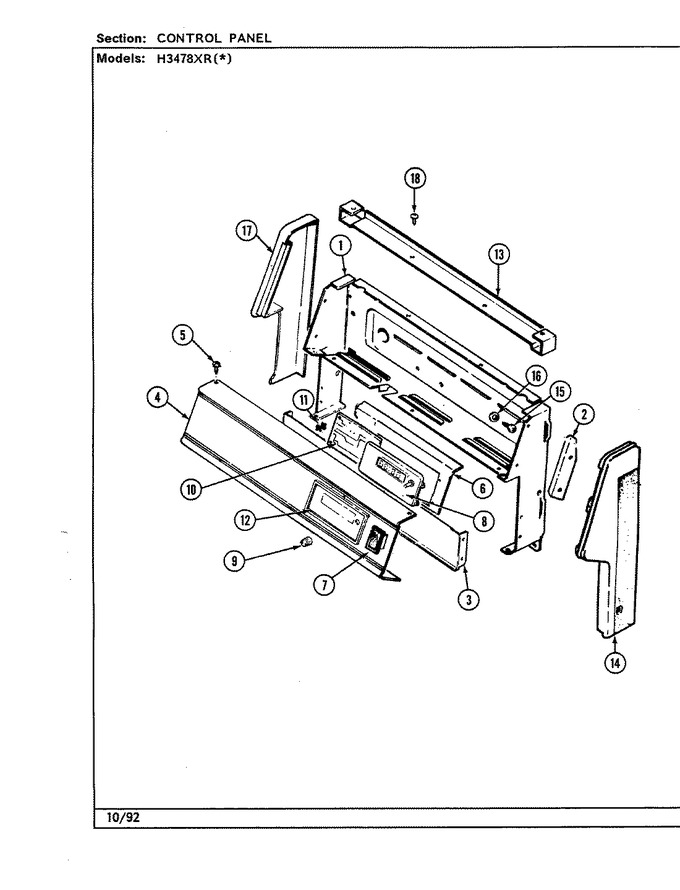

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4001F088-51 | Housing, Backguard | 01 |
|
- | ||||
| 2 | 3807F424-51 | Support, Housing (lt) | 01 |
|
- | ||||
| 2 | 3807F423-51 | Support, Housing (rt) | 01 |
|
- | ||||
| 3 | 3604F188-09 | Shield, Flue | 01 |
|
- | ||||
| 4 | 4851S002-59 | Panel, Control Assy | 01 |
|
- | ||||
| 4 | 4851S008-59 | Panel, Control Assy | 09 |
|
- | ||||
| 5 | WPY706189 | Screw (Replaces: 7118P019-60) | 01 |
|
Immediately | $ 6.47 | |||
| 6 | 3801F263-45 | Bracket, Clock | 01 |
|
- | ||||
| 6 | 3801F310-45 | Bracket, Clock | 09 |
|
- | ||||
| 7 | 7403P067-60 | Switch, Rocker (blk) | 01 |
|
$ 91.35 | ||||
| 8 | 7601P169-60 | Clock | 01 |
|
- | ||||
| 8 | 7601P208-60CP | Clock (Replaces: 7601P208-60) | 09 |
|
- | ||||
| 9 | WP7711P492-60 | Knob, Clock (blk) (Replaces: 7711P431-60) | 01 |
|
$ 12.13 | ||||
| 10 | 7428P012-60 | Relay | 01 |
|
- | ||||
| 11 | 8004P020-60 | Support, Relay Board | 01 |
|
- | ||||
| 12 | W10124350 | Not Required Part Or See Note Trim (supplied W/item No.4) | 01 |
|
- | ||||
| 13 | 4001F064-51 | Extension, Control Panel | 01 |
|
- | ||||
| 14 | 7726P060-60 | End Cap (rt-blk) | 01 |
|
- | ||||
| 15 | W11233072 | Screw (Replaces: 7118P018-60) | 01 |
|
Immediately | $ 12.62 | |||
| 16 | WP3195558 | Nut, Speed (Replaces: 7103P129-60) | 01 |
|
$ 7.68 | ||||
| 17 | 7726P059-60 | End Cap (lt-blk) | 01 |
|
- | ||||
| 18 | 5170P123-60 | Harness Sensor | 01 |
|
- | ||||
| 18 | 5125A354-60 | Wires, Loose | 09 |
|
- | ||||
| 18 | 5125A320-60 | Wires, Loose | 01 |
|
- | ||||
| 18 | 5180D142-60 | Harness, Wire Clock | 01 |
|
- | ||||
| 18 | W11233072 | Screw, Housing (Replaces: 7118P015-60) | 01 |
|
Immediately | $ 12.62 | |||
| 18 | 5170P124-60 | Harness Ctrl To Relay | 01 |
|
- | ||||
| 18 | 5180D152-60 | Harness, Control Panel | 09 |
|
- | ||||
| 18 | 5170P160-60 | Harness, Sensor & Lock | 09 |
|
- | ||||
| 19 | 16000329 | Guide, Quick Ref. - Magic Chef | 01 |
|
- | ||||
| 19 | 8113P026-60 | Insert, Instr Sheet (clock) | 01 |
|
- | ||||
| 19 | 8113P018-60 | Manual, Use & Care | 01 |
|
- |
