SELECT A DIAGRAM

01 - Body


02 - Control Panel


03 - Door/drawer


04 - Door/drawer (ser. Pre. 15)


05 - Gas Controls


06 - Oven


07 - Top Assembly

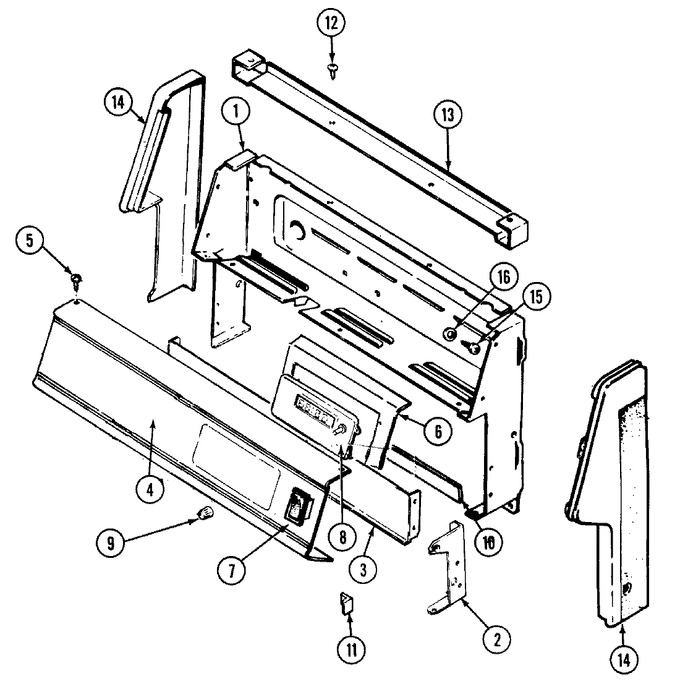

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4005F448-45		Cover, Wire	10	Appelez-nous	-
1	4001F091-51		Housing, Control Panel	10	Appelez-nous	-
2	3807F453-51		Support, Main Top (rt)	10	Appelez-nous	-
2	3807F454-51		Support, Main Top (lt)	10	Appelez-nous	-
3	3604F188-09		Shield, Flue	10	Appelez-nous	-
4	7703P601-60		Panel, Control	10	Appelez-nous	-
5	WPY706189		Screw (8abx3/8-blk)   (Replaces: 7101P347-60)	10		Immediately	$ 6.47
6	74001004		Bracket, Clock	10	Appelez-nous	-
7	7403P067-60		Switch, Rocker (blk)	10			$ 91.35
8	7601P239-60		Clock	10	Appelez-nous	-
8	74001541		Clock (blk)	20	Appelez-nous	-
9	W10124350		Not Required Part Or See Note	20	Appelez-nous	-
9	WP7711P492-60		Knob, Clock (blk)   (Replaces: 7711P492-60)	10			$ 12.13
10	8036P003-60		Shield, Sight	10	Appelez-nous	-
11	WP59002061		Screw, Switch   (Replaces: 7101P148-60)	10			$ 6.98
11	8010P083-60		Spacer	10	Appelez-nous	-
12	W11233072		Screw, Housing   (Replaces: 7118P015-60)	10		Immediately	$ 12.62
13	4001F064-51		Extension, Control Panel	10	Appelez-nous	-
14	7726P060-60		End Cap (rt-blk)	10	Appelez-nous	-
14	7726P059-60		End Cap (lt-blk)	10	Appelez-nous	-
14	W11233072		Screw   (Replaces: 7101P331-60)	10		Immediately	$ 12.62
15	W11233072		Screw   (Replaces: 7118P018-60)	10		Immediately	$ 12.62
16	WP3195558		Nut, Speed   (Replaces: 7103P129-60)	10			$ 7.68
16	12001323		Wire/terminal Kit	10	Appelez-nous	-
17	16007437		Manual, Use & Care	20	Appelez-nous	-
17	8113P066-60		Manual, Use & Care	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
