SELECT A DIAGRAM
01 - Body
02 - Door/drawer

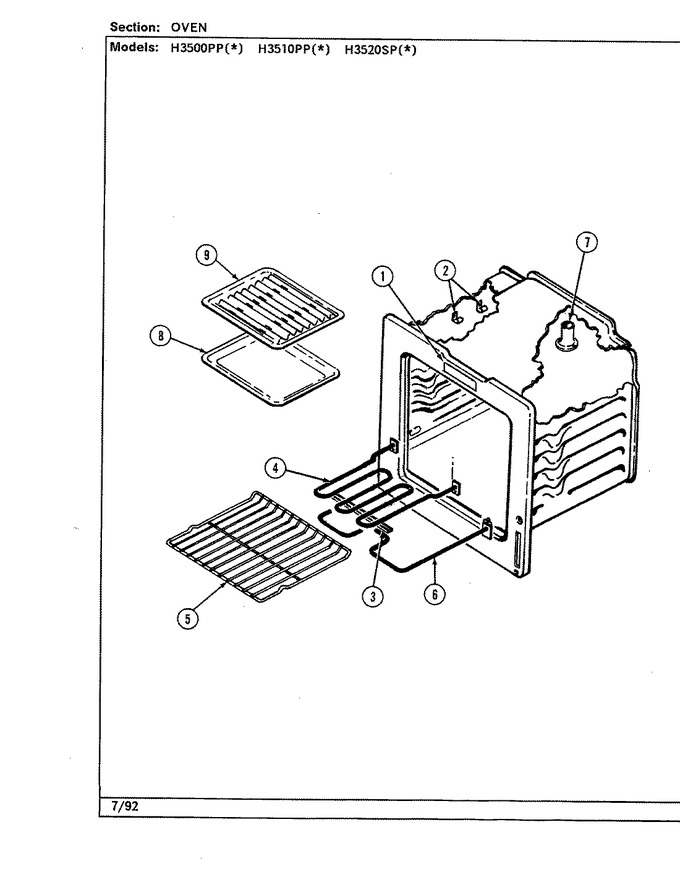

03 - Oven
04 - Top Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8114P323-60 | Cover Lock Set | 01 |
|
- | ||||
| 2 | WP7112P004-60 | Clip, Thermostat (Replaces: 7112P004-60) | 01 |
|
Immediately | $ 11.07 | |||
| 3 | W11772394 | Screw (Replaces: 7101P300-60) | 01 |
|
Immediately | $ 10.94 | |||
| 3 | 3807F389-45 | Support, Element | 01 |
|
- | ||||
| 4 | WPY04000059 | Element, Broil (Replaces: 7406P065-60) | 01 |
|
$ 159.00 | ||||
| 5 | WPW10282492 | Rack, Oven (Replaces: 7801P036-60) | 01 |
|
Immediately | $ 65.15 | |||
| 6 | UB870 | Element, Bake (Replaces: 7406P064-60) | 01 |
|
Immediately | $ 44.96 | |||
| 6 | W11233072 | Screw (Replaces: 7101P290-60) | 01 |
|
Immediately | $ 12.62 | |||
| 7 | 8026P020-60 | Tube, Vent | 01 |
|
- | ||||
| 8 | Y3401F02019 | Pan, Broil | 01 |
|
- | ||||
| 9 | Y3413F01619 | Insert, Broil Pan | 01 |
|
- |
