SELECT A DIAGRAM

01 - Cover


03 - Freezer Door


05 - Refrigerator Door


07 - Cabinet


09 - Shelves


11 - Controls


13 - System


15 - Dispenser


17 - Ice Container


19 - Ice Maker

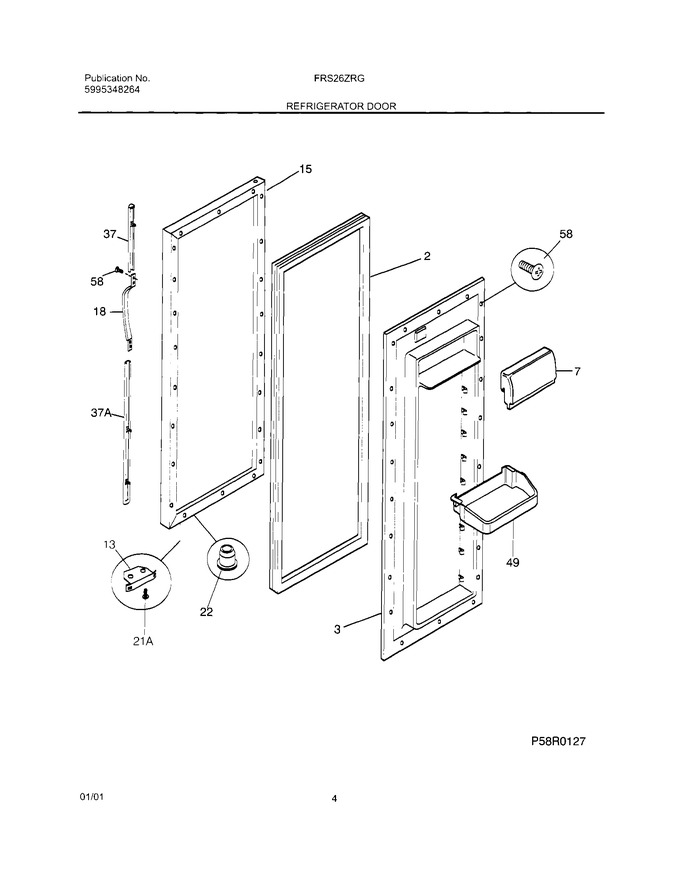

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	215734314		Gasket-refr Door, White, Magnetic				$ 243.34
3	215403201		Panel-inner Door, Refr		Appelez-nous	-
7	5303308608		Door-dairy				$ 196.82
13	5303289522		Door Stop				$ 40.17
15	5303918161		Panel-ext Refr Door,white ,w/foam Insulatn		Appelez-nous	-
18	297311201		Handle-door, White   (Replaces: 218762701)			Immediately	$ 80.60
21	218578600		Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4				$ 8.08
22	5303289320		Bearing-hinge				$ 19.69
37	215867055		Trim-handle, White, Upper, W/chrome Band				$ 51.14
37	218676001		Band-decorative,chrome ,handle Trim				$ 36.17
37	215867053		Trim-handle, White, Lower, W/chrome Band				$ 70.72
37	215782300		Lock-handle Trim,snap-in				$ 34.49
49	215398907		Bin-door,gallon				$ 152.30
58	218781101		Screw,pan Head ,8-18 X 0.625   (Replaces: 218781100)				$ 15.60
NI	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91

    View Diagram in Separate Window       Print Part List
