01 - Body

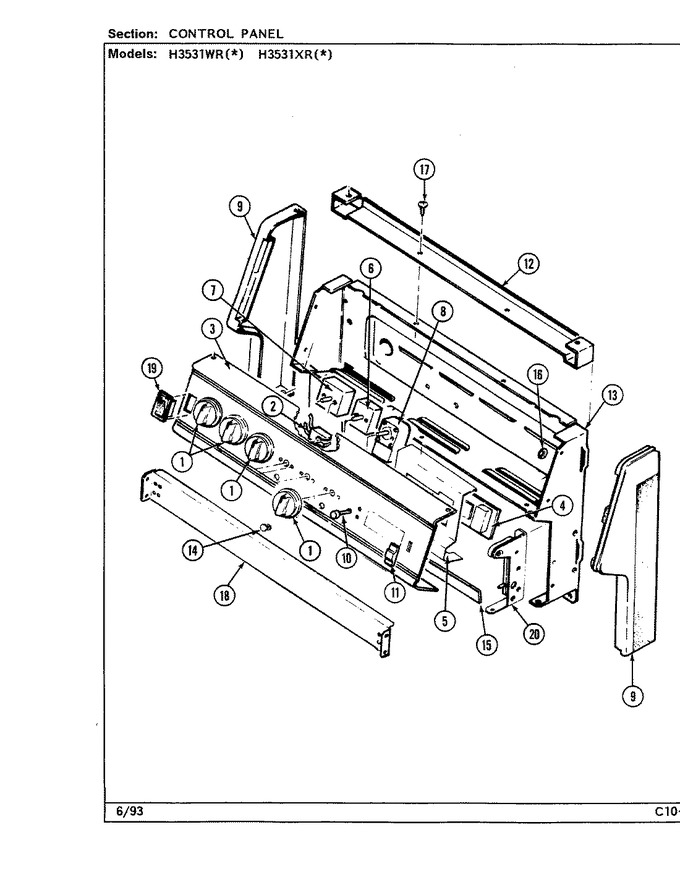

02 - Control Panel
03 - Door/drawer (h3531wrx)
04 - Oven
05 - Top Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7731P082-60 | Knob, Therm/burner (blk) | 01 |
|
- | ||||
| 2 | 7407P081-60 | Light, Indicator | 01 |
|
- | ||||
| 3 | W11233072 | Screw (Replaces: 7118P018-60) | 01 |
|
Immediately | $ 12.62 | |||
| 3 | 4876S069-59 | Panel, Control | 01 |
|
- | ||||
| 4 | 7602P104-60 | Clock | 01 |
|
- | ||||
| 4 | 7101P293-60 | Screw | 01 |
|
- | ||||
| 5 | WPY706189 | Screw (Replaces: 7118P019-60) | 01 |
|
Immediately | $ 6.47 | |||
| 5 | 7109P020-60 | Washer | 01 |
|
- | ||||
| 5 | 3801F266-45 | Bracket Clock Support | 01 |
|
- | ||||
| 6 | WP7403P255-60 | Switch, Selector (Replaces: 7403P255-60) | 01 |
|
$ 131.41 | ||||
| 7 | WP7403P239-60 | Switch, Infinite (lrg Element) (Replaces: 7403P239-60) | 01 |
|
Immediately | $ 35.10 | |||
| 7 | WP7403P238-60 | Switch, Infinite (sml Element) (Replaces: 7403P238-60) | 01 |
|
Immediately | $ 57.78 | |||
| 8 | 7404P081-60 | Thermostat | 01 |
|
- | ||||
| 9 | 7726P059-60 | End Cap (lt-blk) | 01 |
|
- | ||||
| 9 | 7726P060-60 | End Cap (rt-blk) | 01 |
|
- | ||||
| 10 | 7711P468-60 | Button, Set (blk) | 01 |
|
- | ||||
| 11 | 7711P469-60 | Button, Slide (blk) | 01 |
|
- | ||||
| 11 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 01 |
|
Immediately | $ 6.26 | |||
| 12 | 4001F064-51 | Extension, Control Panel | 01 |
|
- | ||||
| 13 | 4001F089-51 | Housing, Backguard | 01 |
|
- | ||||
| 14 | W11690131 | Lens, Indicator Light (Replaces: 7730P008-60) | 01 |
|
$ 6.73 | ||||
| 15 | 3604F201-80 | Shield, Sight | 01 |
|
- | ||||
| 16 | WP3195558 | Nut, Speed (Replaces: 7103P129-60) | 01 |
|
$ 7.68 | ||||
| 17 | W11233072 | Screw, Housing (Replaces: 7118P015-60) | 01 |
|
Immediately | $ 12.62 | |||
| 18 | 3802F087-51 | Brace, Lwr Bkgd | 01 |
|
- | ||||
| 19 | 7403P067-60 | Switch, Rocker (blk) | 01 |
|
$ 91.35 | ||||
| 20 | 5170D118-60 | Harness, Control Panel | 01 |
|
- | ||||
| 20 | 5125A315-60 | Harness, Loose Wire | 01 |
|
- | ||||
| 20 | 3418A087-34 | Hinge, Main Top (rt) | 01 |
|
- | ||||
| 20 | 3418A088-34 | Hinge, Main Top (lt) | 01 |
|
- | ||||
| 21 | 8113P023-60 | Manual, Use & Care | 01 |
|
- |
