SELECT A DIAGRAM

01 - Body


02 - Control Panel


03 - Door/drawer (h3531xux)


04 - Oven


05 - Top Assembly

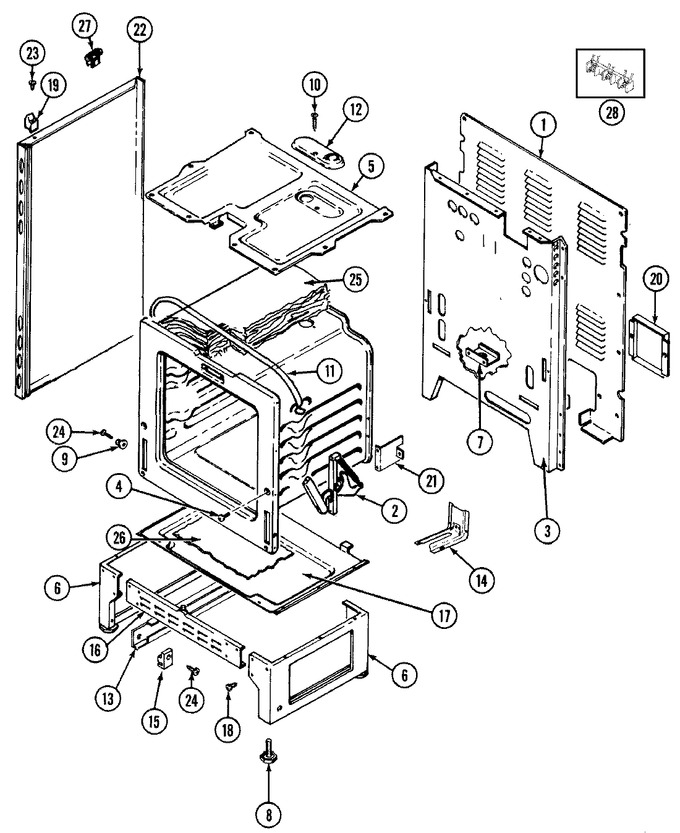

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4005F348-51		Cover, Main Back Wire	10	Appelez-nous	-
2	7106P055-60		Hinge	10			$ 52.22
3	4002F189-80		Back, Main	10	Appelez-nous	-
4	WP4159193		Screw   (Replaces: 7101P115-60)	10			$ 4.29
5	4011F208-19		Box, Burner	10	Appelez-nous	-
6	4020W013-80		Pedestal (sides)	10	Appelez-nous	-
7	3605F174-51		Plate, Conduit Tubing	10	Appelez-nous	-
8	7101P306-60		Leg, Leveling	10	Appelez-nous	-
9	W10857933		Spacer, Side Panel   (Replaces: 8004P024-60)	10			$ 7.07
10	7101P103-60		Screw	10	Appelez-nous	-
11	4820F001-59		Strap, Retainer	10	Appelez-nous	-
12	4005F432-45		Cover, Vent	10	Appelez-nous	-
13	3406F028-51		Runner, Drawer	10	Appelez-nous	-
14	WP7101P485-60		Screw, Bracket   (Replaces: 7101P289-60)	10			$ 26.33
14	WP3801F656-51		Bracket, Anti-tip   (Replaces: 3801F218-51)	10		Immediately	$ 4.69
15	8004P033-60		Support, Drawer	10	Appelez-nous	-
16	4020F001-80		Pedestal, Front/rear	10	Appelez-nous	-
17	3804F112-47		Retainer, Insulation	10	Appelez-nous	-
18	W11233072		Screw   (Replaces: 7101P290-60)	10		Immediately	$ 12.62
19	8010P087-60		Spacer, Main Top (lt)	10	Appelez-nous	-
19	8010P088-60		Spacer, Main Top (rt)	10	Appelez-nous	-
20	4005F427-51		Cover, Access	10	Appelez-nous	-
21	3807F400-51		Support,oven Rear	10	Appelez-nous	-
22	2618F110-74		Panel, Side (alm)	10	Appelez-nous	-
23	WP74004005		Screw   (Replaces: 7118P013-60)	10			$ 6.95
24	W11772394		Screw   (Replaces: 7101P345-60)	10		Immediately	$ 10.94
25	4804F044-60		Insulation, Oven Wrap	10	Appelez-nous	-
25	4804F017-60		Insulation, Back	10	Appelez-nous	-
26	8312P058-60		Foil, Insulation Retainer	10	Appelez-nous	-
27	8007P023-60		Bushing, Prop	10	Appelez-nous	-
28	W11684512		Screw (10abx1.0-zn)   (Replaces: 7101P060-60)	10			$ 12.69
28	WPW10245259		Block, Terminal   (Replaces: 7401P039-60)	10		Immediately	$ 31.65
