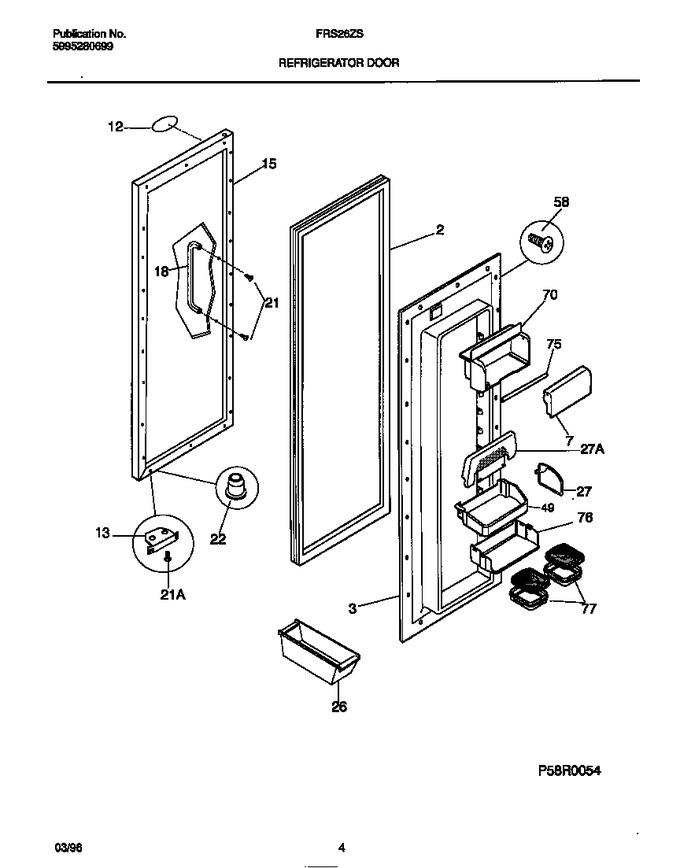

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	215734314		Gasket-refr Door, White, Magnetic				$ 243.34
3	215434301		Panel-inner Door, Refr		Appelez-nous	-
7	218383101		Door-dairy		Appelez-nous	-
12	218395402		Nameplate, White		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
15	218631600		Panel-refr Door, Stainless Steel, W/foam Insulatn		Appelez-nous	-
18	218395301		Handle-door, Stainless Steel		Appelez-nous	-
21	215659600		Screw-handle Mtg,hex Head, 10-32 X 1/2		Appelez-nous	-
21	218578600		Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4				$ 8.08
22	5303289320		Bearing-hinge				$ 19.69
26	3204522		Container-egg				$ 98.33
27	218370101		Snugger-door Bin, ``paddle Type``, Gallon Door Bin				$ 88.03
27	218714201		Retainer, Tall Bottle				$ 42.72
49	218592303		Bin-door, ``mongo``		Appelez-nous	-
58	5303314236		Screw, Truss/ph Head, 8-18ab X .500		Appelez-nous	-
70	218383202		Housing-dairy Compt		Appelez-nous	-
75	218431100		Bumper-dairy Door		Appelez-nous	-
76	218423600		Rack-microwave Dish				$ 55.35
77	218423501		Dish-microwave, (2)				$ 4.59
*36404	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
*36405	215361200		Foam Strip, Handle Mtg Hole		Appelez-nous	-
*36406	01300019EA		Cleaner, Stainless Steel   (Replaces: 218490900)			Immediately	$ 21.27
