SELECT A DIAGRAM

01 - Body


02 - Control Panel


03 - Door/drawer


04 - Oven


05 - Top Assembly

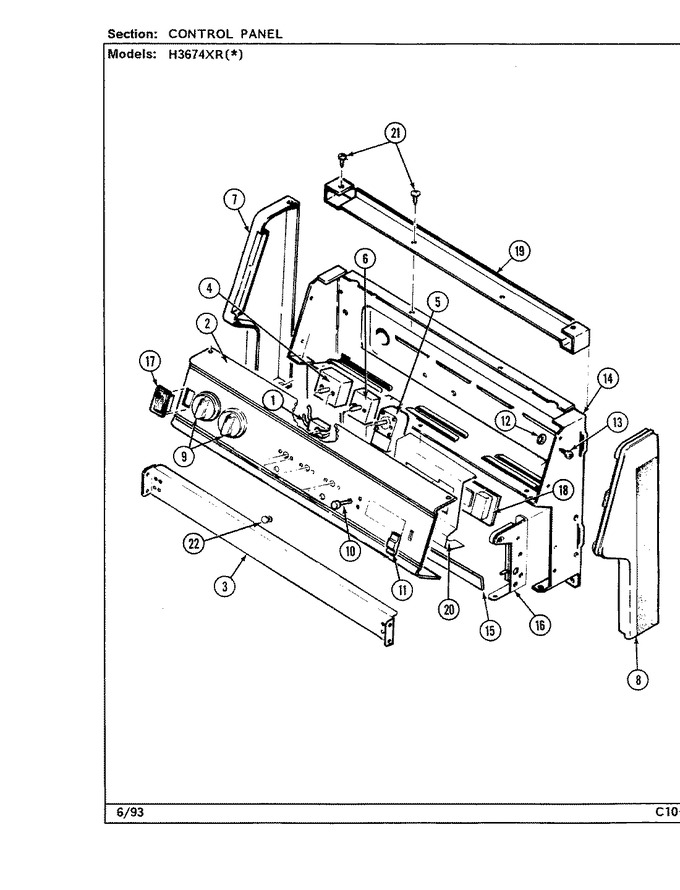

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7407P081-60		Light, Indicator	01	Appelez-nous	-
2	4876S069-59		Panel, Control	01	Appelez-nous	-
3	3802F087-51		Brace, Lwr Bkgd	01	Appelez-nous	-
4	WP7403P238-60		Switch, Infinite (sml Element)   (Replaces: 7403P238-60)	01		Immediately	$ 57.78
4	WP7403P239-60		Switch, Infinite (lrg Element)   (Replaces: 7403P239-60)	01		Immediately	$ 35.10
5	7404P081-60		Thermostat	01	Appelez-nous	-
6	WP7403P255-60		Switch, Selector   (Replaces: 7403P255-60)	01			$ 131.41
7	7726P059-60		End Cap (lt-blk)	01	Appelez-nous	-
8	7726P060-60		End Cap (rt-blk)	01	Appelez-nous	-
9	7731P082-60		Knob, Therm/burner (blk)	01	Appelez-nous	-
10	7711P468-60		Button, Set (blk)	01	Appelez-nous	-
11	7711P469-60		Button, Slide (blk)	01	Appelez-nous	-
12	WP3195558		Nut, Speed   (Replaces: 7103P129-60)	01			$ 7.68
13	WP7101P309-60		Screw   (Replaces: 7101P309-60)	01		Immediately	$ 6.26
14	4001F089-51		Housing, Backguard	01	Appelez-nous	-
15	3604F201-80		Shield, Sight	01	Appelez-nous	-
16	3807F424-51		Support, Housing (lt)	01	Appelez-nous	-
16	3807F423-51		Support, Housing (rt)	01	Appelez-nous	-
17	7403P067-60		Switch, Rocker (blk)	01			$ 91.35
18	7602P104-60		Clock	01	Appelez-nous	-
19	4001F064-51		Extension, Control Panel	01	Appelez-nous	-
20	3801F266-45		Bracket Clock Support	01	Appelez-nous	-
21	WPY706189		Screw   (Replaces: 7118P019-60)	01		Immediately	$ 6.47
22	5175D052-60		Harness, Burner Box	01	Appelez-nous	-
22	5170P124-60		Harness Ctrl To Relay	01	Appelez-nous	-
22	5170P123-60		Harness Sensor	01	Appelez-nous	-
22	5170D122-60		Harness Bkgd	01	Appelez-nous	-
22	W11690131		Lens, Indicator Light   (Replaces: 7730P008-60)	01			$ 6.73
23	8113P002-60		Manual, Use & Care	01	Appelez-nous	-
24	8112P105-60		Manual, Use & Care-insert	01	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
