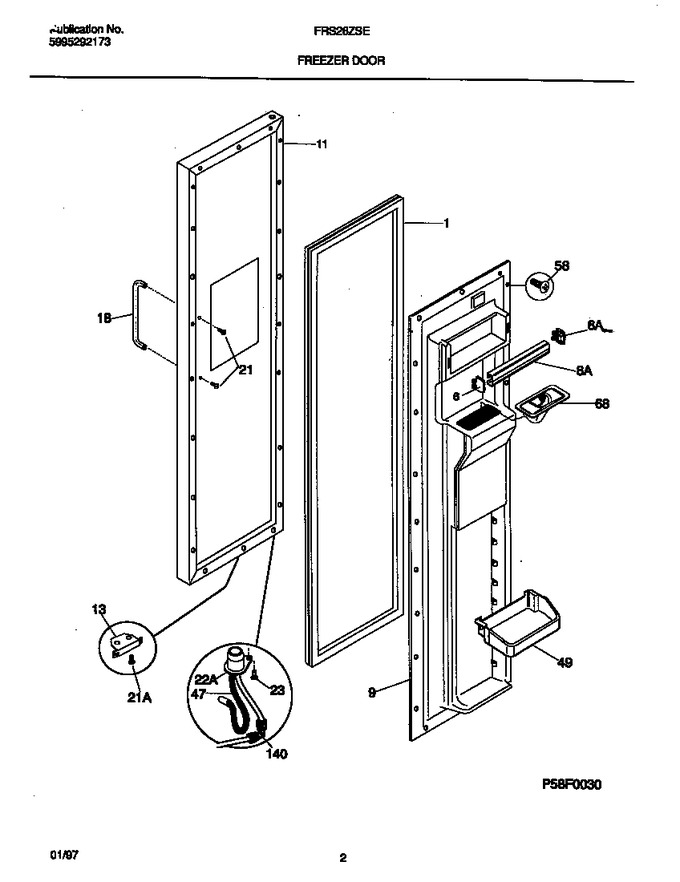

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215734313		Gasket-frzr Door, White, Magnetic				$ 244.78
6	5303297813		Support-door Rack, Lh				$ 49.77
6	5303297814		Support-door Rack, Rh				$ 52.50
8	215474039		Rack-door		Appelez-nous	-
9	218470101		Panel-inner Door, Frzr		Appelez-nous	-
11	218631500		Panel-frzr Door, Stainless Steel, W/foam Insulatn		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
18	218395301		Handle-door, Stainless Steel		Appelez-nous	-
21	218578600		Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4				$ 8.08
21	218709100		Screw-handle Mtg, Hex Head, 10-32 X 1/2		Appelez-nous	-
22	215615300		Bushing-door,bronze		Appelez-nous	-
23	5303001020		Screw, Cr Flat Head, 8-32(d) X 1/2		Appelez-nous	-
47	218741300		Harness-wiring, Frzr Door				$ 117.94
49	218592301		Bin-door, ``mongo``				$ 146.20
58	218749600		Screw, 10 Pan Head, 8-18 X 0.500				$ 5.15
68	218495200		Chute-ice		Appelez-nous	-
140	218518700		Elbow-water Tube				$ 61.22
*13680	215598900		Washer-flat, .691 X 1 X .05, Zinc, I&w Hinge Brkt		Appelez-nous	-
*13681	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
*13682	215361200		Foam Strip, Handle Mtg Hole		Appelez-nous	-
*13683	01300019EA		Cleaner, Stainless Steel   (Replaces: 218490900)			Immediately	$ 21.27
