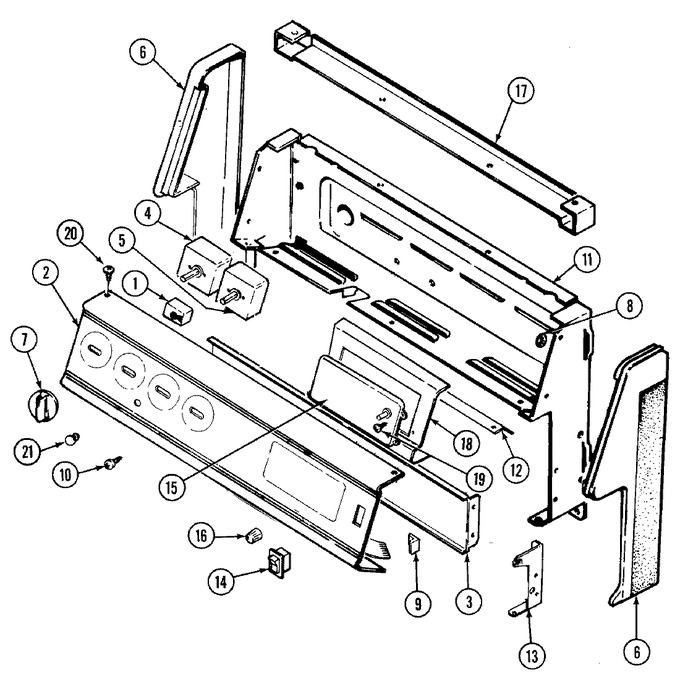

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10852510 | Light, Indicator (Replaces: 7407P102-60) | 10 |
|
$ 106.11 | ||||
| 2 | 7703P576-60 | Panel, Control | 10 |
|
- | ||||
| 3 | 3802F088-51 | Brace, Control Panel | 10 |
|
- | ||||
| 4 | WP7403P238-60 | Switch, Infinite (sml Element) (Replaces: 7403P238-60) | 10 |
|
Immediately | $ 57.78 | |||
| 5 | WP7403P239-60 | Switch, Infinite (lrg Element) (Replaces: 7403P239-60) | 10 |
|
Immediately | $ 35.10 | |||
| 6 | 7726P059-60 | End Cap (lt-blk) | 10 |
|
- | ||||
| 6 | 7726P060-60 | End Cap (rt-blk) | 10 |
|
- | ||||
| 7 | 7737P028-60 | Knob, Infinite | 10 |
|
- | ||||
| 8 | WP3195558 | Nut, Speed (Replaces: 7103P129-60) | 10 |
|
$ 7.68 | ||||
| 9 | 8010P083-60 | Spacer | 10 |
|
- | ||||
| 10 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 10 |
|
Immediately | $ 6.26 | |||
| 11 | W11233072 | Screw, Housing (Replaces: 7118P015-60) | 10 |
|
Immediately | $ 12.62 | |||
| 11 | 4001F091-51 | Housing, Control Panel | 10 |
|
- | ||||
| 12 | 3604F201-80 | Shield, Sight | 10 |
|
- | ||||
| 13 | 3807F454-51 | Support, Main Top (lt) | 10 |
|
- | ||||
| 13 | 3807F453-51 | Support, Main Top (rt) | 10 |
|
- | ||||
| 14 | 7403P067-60 | Switch, Rocker (blk) | 10 |
|
$ 91.35 | ||||
| 15 | 7601P236-60 | Clock | 10 |
|
- | ||||
| 16 | WP7711P492-60 | Knob, Clock (blk) (Replaces: 7711P492-60) | 10 |
|
$ 12.13 | ||||
| 17 | 4001F064-51 | Extension, Control Panel | 10 |
|
- | ||||
| 18 | 3801F338-45 | Bracket, Clock | 10 |
|
- | ||||
| 19 | WP59002061 | Screw, Switch (Replaces: 7101P148-60) | 10 |
|
$ 6.98 | ||||
| 20 | WPY706189 | Screw (8abx3/8-blk) (Replaces: 7101P347-60) | 10 |
|
Immediately | $ 6.47 | |||
| 21 | W11690131 | Lens, Indicator Light (Replaces: 7730P012-60) | 10 |
|
$ 6.73 | ||||
| 22 | 5170P205-60 | Harness, Sensor/lock | 10 |
|
- | ||||
| 22 | 5125A381-60 | Harness, Loose Wire | 10 |
|
- | ||||
| 22 | 5170D199-60 | Harness, Control Panel | 10 |
|
- | ||||
| 22 | 5175D063-60 | Harness, Panel To Top | 10 |
|
- | ||||
| 23 | 16000329 | Guide, Quick Ref. - Magic Chef | 10 |
|
- | ||||
| 23 | 8112P105-60 | Manual, Use & Care-insert | 10 |
|
- | ||||
| 23 | 8113P068-60 | Manual, Use & Care | 10 |
|
- |
