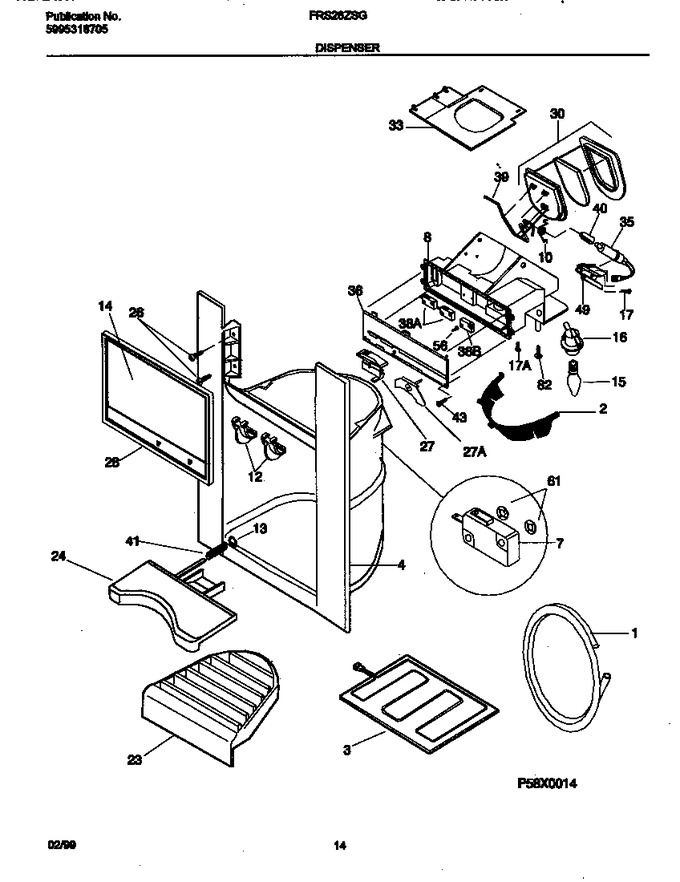

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5318582501		Tube-water Inlet, 93``, Plastic, Cut To Size		Appelez-nous	-
2	218505303		Deflector-ice Disp, Black		Appelez-nous	-
3	215484300		Heater-door Housing				$ 40.85
4	218432103		Housing-dispenser, Black		Appelez-nous	-
7	218841901		Switch-actuator,micro				$ 47.68
8	218835701		Module-dispenser				$ 75.86
10	218209800		Spring,dispenser Door		Appelez-nous	-
12	218836203		Knob-selector,black		Appelez-nous	-
13	215748101		Ring-snap,actuator				$ 50.09
14	218416166		Label-module Cover,black				$ 46.89
15	218284900		Light Bulb / Lamp, 4w, 115v		Appelez-nous	-
16	240548901		Socket-light/lamp   (Replaces: 215284900)				$ 63.70
17	215794400		Screw,6 X 1/4		Appelez-nous	-
23	5303299660		Drip Tray, Black				$ 70.04
24	218796503		Actuator,black				$ 116.05
26	215503203		Screw,cr Pan Hd ,10-16 X 1/2 ,spec/hi-lo   (Replaces: 215503200)			Immediately	$ 7.09
27	218814901		Rocker-switch		Appelez-nous	-
27	218432600		Cam-slide				$ 53.97
28	218700603		Cover-module, Black		Appelez-nous	-
30	215753600		Door Assy-ice Chute, W/gasket, Insul		Appelez-nous	-
33	218870201		Heater-disp Throat				$ 244.43
35	218740003		Heat Motor, 115v				$ 131.99
36	218835601		Cover-slctr Switch,ice Dispenser				$ 27.09
38	241689106		Switch-micro,single Pole ,single Throw   (Replaces: 218835401)			Immediately	$ 8.60
38	218479900		Switch-micro,single Pole ,double Throw				$ 57.65
39	218284600		Wire-ice Door		Appelez-nous	-
40	218284500		Yoke-heat Motor				$ 35.01
41	215765400		Spring-actuator				$ 78.96
43	5303001083		Screw,tw Hx Cr Pan Hd ,8-16 X 0.500		Appelez-nous	-
49	215794000		Bracket-heat Motor				$ 34.81
56	218434300		Screw-micro Switch, Pan Head, 4-24 X 9/16		Appelez-nous	-
61	215766000		Ring-retainer,micro Switch				$ 34.40
82	215296300		Screw,plask H/l,6 X 3/8		Appelez-nous	-
*25926	215294101		Tube-water Inlet,formed,plastic,dispenser				$ 91.25
*25927	218658301		Tube-water Inlet,filter ,to Filter Valve,w/elbow				$ 68.80
*25928	218832301		Tube-water Inlet,inlet Valve ,to Filter		Appelez-nous	-
*25929	218859801		Tube-water Inlet,inlet Valve ,to Filter		Appelez-nous	-
*25930	215944300		Shield-micro Switch				$ 58.85
*25931	215781700		Clip-tube		Appelez-nous	-
*25932	218863101		Harness-wiring,disp				$ 85.43
*25933	5300460947		Tape-i&w Dispenser,double Faced ,foam ,60 X1-1/4 X1/32,(				$ 9.82
17A	215840700		Screw,truss Head,6-20 X 3/8		Appelez-nous	-
17B	215923400		Washer-flat		Appelez-nous	-
