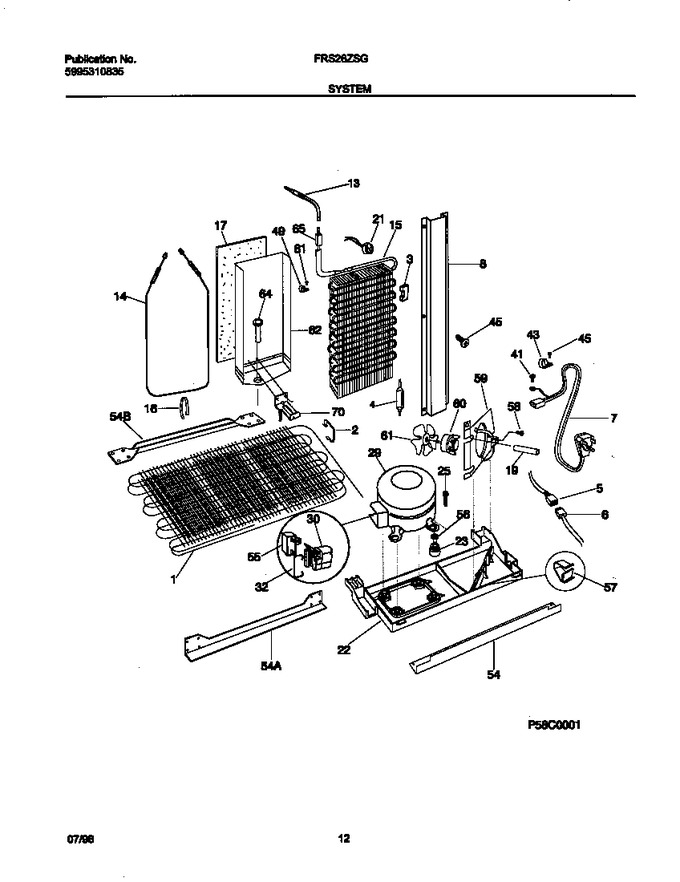

07 - System
08 - Ice Dispenser
09 - Ice Container
10 - Ice Maker
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218787900 | Condenser |
|
$ 122.95 | |||||
| 2 | 5303289029 | Clip-cond Mtg. (4) |
|
- | |||||
| 3 | 218679603 | Block-evap Coil,styrofoam ,(2) |
|
- | |||||
| 4 | 5303305677 | Drier-filter (Replaces: 218541000) |
|
Immediately | $ 31.67 | ||||
| 5 | 218646100 | Harness-wiring, Main |
|
- | |||||
| 6 | 218741400 | Harness-wiring, Machine Compt |
|
- | |||||
| 7 | 215459201 | Cord-electric Power |
|
$ 66.47 | |||||
| 8 | 218803400 | Cover-wiring |
|
$ 79.11 | |||||
| 13 | 215006701 | Heat Exchanger, Suction Line |
|
- | |||||
| 14 | 218169802 | Heater-defrost |
|
Immediately | $ 115.10 | ||||
| 15 | 218691301 | Evaporator, R134a System |
|
$ 463.21 | |||||
| 16 | 5308000110 | Strap-evap/heater, Aluminum |
|
Immediately | $ 59.82 | ||||
| 17 | 5303289496 | Insulator-evap |
|
$ 2.63 | |||||
| 19 | 5303001198 | Tube-rubber |
|
- | |||||
| 21 | 5303917954 | Thermostat-defrost (Replaces: 5316269001) |
|
Immediately | $ 30.47 | ||||
| 22 | 218811100 | Base-compressor Mtg, (drain Pan) |
|
- | |||||
| 23 | 218513300 | Grommet-compr Mtg,(4) |
|
$ 42.53 | |||||
| 25 | 218773500 | Screw-compressor Mtg, Hex Washer Head, 10b X 1 1/4 |
|
- | |||||
| 30 | 216008902 | Starter-ptc |
|
- | |||||
| 31 | 5303308603 | Overload Protector |
|
$ 117.08 | |||||
| 32 | 215012000 | Wire-bale |
|
$ 2.63 | |||||
| 41 | 5308000039 | Screw |
|
- | |||||
| 43 | 215174700 | Clamp-service Cord, Strain Relief, Galv Steel |
|
- | |||||
| 45 | 5304455651 | Screw (Replaces: 5303001343) |
|
$ 14.41 | |||||
| 49 | 215506900 | Bracket-evap Mtg |
|
- | |||||
| 54 | 5303289027 | Rail-cabinet Base,rear |
|
- | |||||
| 54 | 5303289311 | Rail-compr Support |
|
- | |||||
| 54 | 5303289292 | Rail-cabinet Base, Front |
|
- | |||||
| 55 | 218764602 | Capacitor-run |
|
$ 89.31 | |||||
| 56 | 218769300 | Insert-compressor Mtg |
|
- | |||||
| 57 | 218247300 | Clip-wiring Harness |
|
- | |||||
| 58 | 215004600 | Screw,cond Fan Mtr, Hx Serr Wshr Hd, 8-36 X 7/16, (2) |
|
- | |||||
| 59 | 5303289031 | Shroud-cond Fan Mtr |
|
- | |||||
| 60 | 215501800 | Motor-condenser Fan |
|
- | |||||
| 61 | 5303289032 | Blade-cond Fan |
|
- | |||||
| 62 | 215048701 | Trough-drain, W/shield Assy, & 17 Insulator |
|
- | |||||
| 64 | 5303289063 | Tube-drain |
|
- | |||||
| 65 | 5303289301 | Spacer-tube |
|
$ 35.39 | |||||
| 70 | 5303289041 | Bracket-evap/cvr Mtg |
|
- | |||||
| 81 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| *58195 | 5303289026 | Spacer Tube |
|
- | |||||
| *58196 | 215005200 | Harness-wiring,refr Controls |
|
- | |||||
| *58197 | 218463600 | Harness-wiring,crisper Lights |
|
- | |||||
| *58198 | 218646000 | Harness-wiring, Filter Heater |
|
- | |||||
| *58199 | 218815101 | Harness-wiring,frzr Controls |
|
- | |||||
| *58200 | 218754500 | Screw,hex Hd Ser Wshr ,8-18 X 3/8 |
|
- | |||||
| *58201 | 5303001199 | Clamp |
|
$ 65.92 | |||||
| *58202 | 240396801 | Clamp, Nylon (Replaces: 5308000133) |
|
$ 19.13 | |||||
| *58203 | 5300141713 | Screw,hex Wshr Hd ,8-32 X .625 ,spec |
|
- | |||||
| *58204 | 5304455852 | Screw,hex Wshr Hd,8-15(a) X 1 (Replaces: 5303207328) |
|
$ 12.76 | |||||
| *58205 | 215004700 | Nut,speed |
|
$ 3.78 | |||||
| *58206 | 215223700 | Grommet-silencer |
|
- | |||||
| *58207 | 5303917166 | Hot Tube Repair Kit, Service |
|
- | |||||
| *58208 | 218631200 | Tube, Rubber |
|
- | |||||
| 29A | 218374511 | Compressor,r134a ,w/o Electricals |
|
- | |||||
| 29B | 5304475102 | Compressor, R134a, W/ovld & Drier (Replaces: 5303917619) |
|
Immediately | $ 660.56 |
