SELECT A DIAGRAM
01 - Body (h4251wrx)
02 - Control Panel (h4251wrx)
03 - Door/drawer (h4251wrx)

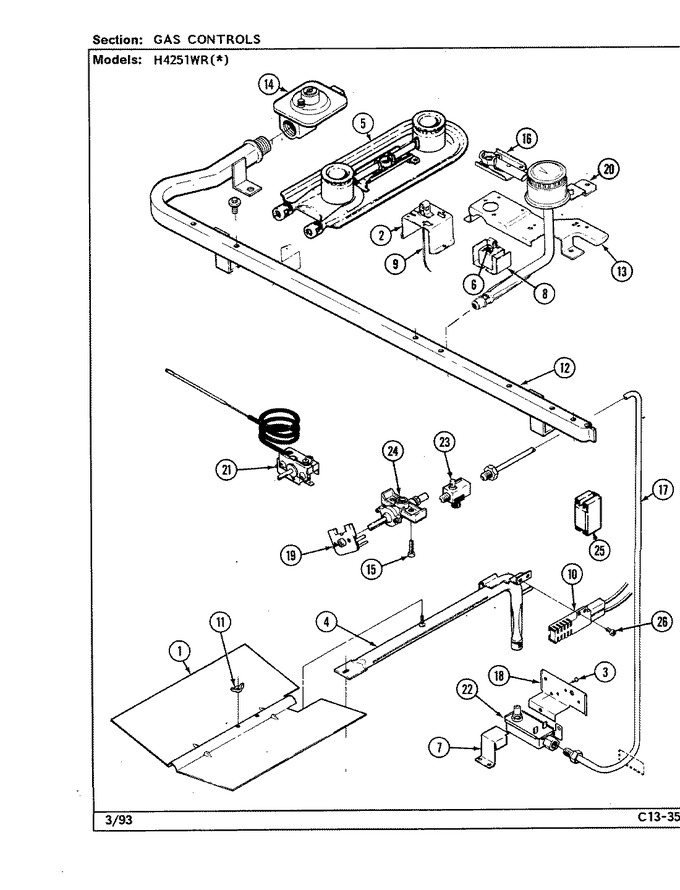

04 - Gas Controls (h4251wrx)
05 - Oven
06 - Top Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601F099-45 | Baffle, Broil | 01 |
|
- | ||||
| 1 | 3601F215-45 | Baffle, Oven Burner | 01 |
|
- | ||||
| 2 | 3807F112-34 | Support | 01 |
|
- | ||||
| 3 | WP4159193 | Screw (Replaces: 7101P115-60) | 01 |
|
$ 4.29 | ||||
| 4 | 3403D030-45 | Burner Assy., Oven | 01 |
|
- | ||||
| 5 | 3412A004-19 | Burner, Top | 01 |
|
- | ||||
| 6 | 7432P015-60 | Igniter, Top Burner | 01 |
|
$ 53.77 | ||||
| 7 | 4005F173-51 | Cover, Valve Terminal | 01 |
|
- | ||||
| 8 | 3807F069-34 | Support | 01 |
|
- | ||||
| 9 | 7432P015-60 | Igniter, Top Burner | 01 |
|
$ 53.77 | ||||
| 10 | 12400035 | Igniter, Oven (Replaces: 7432P076-60) | 01 |
|
Immediately | $ 60.44 | |||
| 11 | 7103P030-60 | Nut, Wing | 01 |
|
$ 6.37 | ||||
| 12 | 7513P138-60 | Pipe, Manifold | 01 |
|
- | ||||
| 13 | 3807F230-34 | Support, Griddle Burner | 01 |
|
- | ||||
| 14 | 7510P002-60 | Regulator, Pressure | 01 |
|
- | ||||
| 15 | WP4159193 | Screw (Replaces: 7101P115-60) | 01 |
|
$ 4.29 | ||||
| 16 | 7506P018-60 | Tube | 01 |
|
- | ||||
| 17 | 3414F051-44 | Tubing 3/8 X 56.5`` | 01 |
|
- | ||||
| 18 | 3807F124-34 | Support | 01 |
|
- | ||||
| 19 | WP7403P287-60 | Switch, Igniter (Replaces: 7403P287-60) | 01 |
|
$ 130.75 | ||||
| 20 | 7505P001-60 | Burner | 01 |
|
- | ||||
| 21 | 7101P279-60 | Screw W/washer | 01 |
|
- | ||||
| 21 | 7404P062-60 | Thermostat, Oven | 01 |
|
- | ||||
| 22 | 7501P106-60 | Valve, Oven | 01 |
|
- | ||||
| 22 | 7501P136-60 | Valve, Oven (natural) | 02 |
|
- | ||||
| 22 | 1555251 | Nut, Loxit (3/8``) | 01 |
|
- | ||||
| 23 | 7502P002-60 | Valve, Shut Off | 01 |
|
- | ||||
| 24 | 7502P185-60 | Valve, Burner | 01 |
|
- | ||||
| 25 | 12001596 | Module, Spark (Replaces: 7431P023-60) | 01 |
|
Immediately | $ 85.93 | |||
| 26 | WP4159193 | Screw (10-24x5/16-ni) (Replaces: 7101P282-60) | 01 |
|
$ 4.29 |
