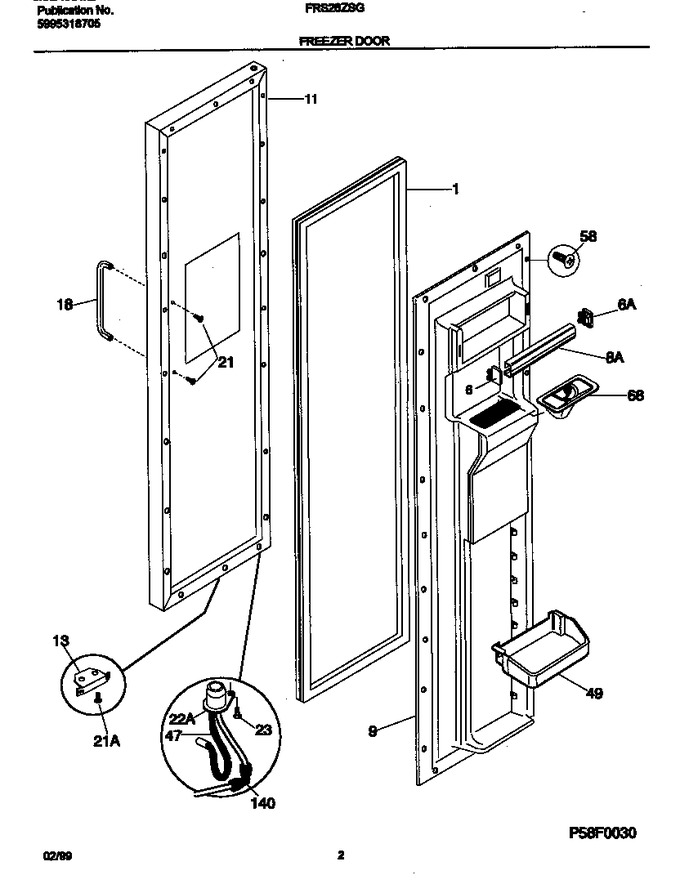

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 215734313 | Gasket-frzr Door, White, Magnetic |
|
$ 244.78 | |||||
| 6 | 5303323485 | Support-door Rack, White, Rh |
|
- | |||||
| 6 | 5303323484 | Support-door Rack, White, Lh |
|
- | |||||
| 8 | 215474039 | Rack-door |
|
- | |||||
| 9 | 218470101 | Panel-inner Door, Frzr |
|
- | |||||
| 11 | 218631500 | Panel-frzr Door, Stainless Steel, W/foam Insulatn |
|
- | |||||
| 13 | 5303289522 | Door Stop |
|
$ 40.17 | |||||
| 18 | 218756501 | Handle-door, Stainless Steel, With Insert |
|
- | |||||
| 21 | 218709100 | Screw-handle Mtg, Hex Head, 10-32 X 1/2 |
|
- | |||||
| 21 | 218578600 | Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4 |
|
$ 8.08 | |||||
| 22 | 215615300 | Bushing-door,bronze |
|
- | |||||
| 23 | 5303001020 | Screw, Cr Flat Head, 8-32(d) X 1/2 |
|
- | |||||
| 47 | 218850101 | Harness-wiring,frzr Door |
|
- | |||||
| 49 | 218592301 | Bin-door, ``mongo`` |
|
$ 146.20 | |||||
| 58 | 218781101 | Screw, Pan Head, 8-18 X 5/8 (Replaces: 218781100) |
|
$ 15.60 | |||||
| 68 | 218495200 | Chute-ice |
|
- | |||||
| 140 | 218518700 | Elbow-water Tube |
|
$ 61.22 | |||||
| *25880 | 215598900 | Washer-flat, .691 X 1 X .05, Zinc, I&w Hinge Brkt |
|
- | |||||
| *25881 | 01300019EA | Cleaner, Stainless Steel (Replaces: 218490900) |
|
Immediately | $ 21.27 | ||||
| *25882 | 218789501 | Heater-lower Flange |
|
- | |||||
| *25883 | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 |
