Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 13648 Assy,clutch Appelez-nous -
2 13809 Assy,clutch Base Appelez-nous -
3 13810 Gear Appelez-nous -
4 13811 Shaft Appelez-nous -
5 13514 Packing Appelez-nous -
6 13812 Assy,gear Box Appelez-nous -
7 13522 Pulley,boss Appelez-nous -
8 13508 Cover,clutch Appelez-nous -
9 13517 Gear,ratchet Appelez-nous -
10 13518 Pulley Appelez-nous -
11 13519 Nut Appelez-nous -
12 13546 No Longer Available Appelez-nous -
13 13509 Screw Appelez-nous -
14 13511 Lever,clutch Special Order $ 83.96

15 13510 Spring,brake Lever Appelez-nous -
NI 13516 Oil,clutch Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

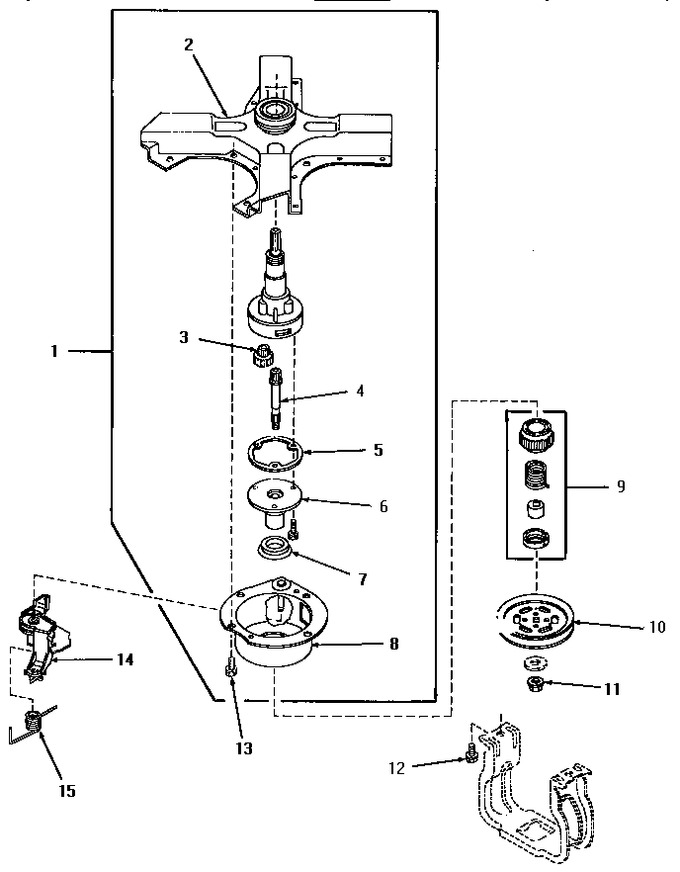

Diagram for HA1200
