SELECT A DIAGRAM

02 - Backguard


03 - Cooktop Parts


04 - Door Parts


05 - Broiler Parts


06 - Body Parts


07 - Drawer Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3131366		Bracket, Glass (2)		Appelez-nous	-
2	3051148		Glass, Heat Barrier		Appelez-nous	-
3	276T105P02		Glass-package		Appelez-nous	-
4	3131132		Glass, Front		Appelez-nous	-
5	3131256		Handle		Appelez-nous	-
6	3202147		Liner		Appelez-nous	-
7	3131601		Seal, Door		Appelez-nous	-
8	3202151		Shield, Wool		Appelez-nous	-
9	3131123		Support-glass (2)		Appelez-nous	-
10	3051728		Trim, Oven Door		Appelez-nous	-
11	3131720		Clip, Retainer (2)		Appelez-nous	-
12	3131974		Fastener, Spacer (6)		Appelez-nous	-
13	3131102		Screw-handle Mtg (2)		Appelez-nous	-
14	636T139P02		Screw-door Mtg (3)		Appelez-nous	-
16	3131322		Insulation, Wool		Appelez-nous	-
17	3934003		Seal-foam		Appelez-nous	-
*11928	3131360		Foil-aluminum (2)		Appelez-nous	-
*11928	3131361		Foil Aluminum		Appelez-nous	-
15A	241T017P185		Fastnr 8a U-type (3) (non-illustrated)		Appelez-nous	-
15B	636T143P01		Screw		Appelez-nous	-
15C	636T143P05		Screw-door Mtg (4) (non-illustrated)		Appelez-nous	-

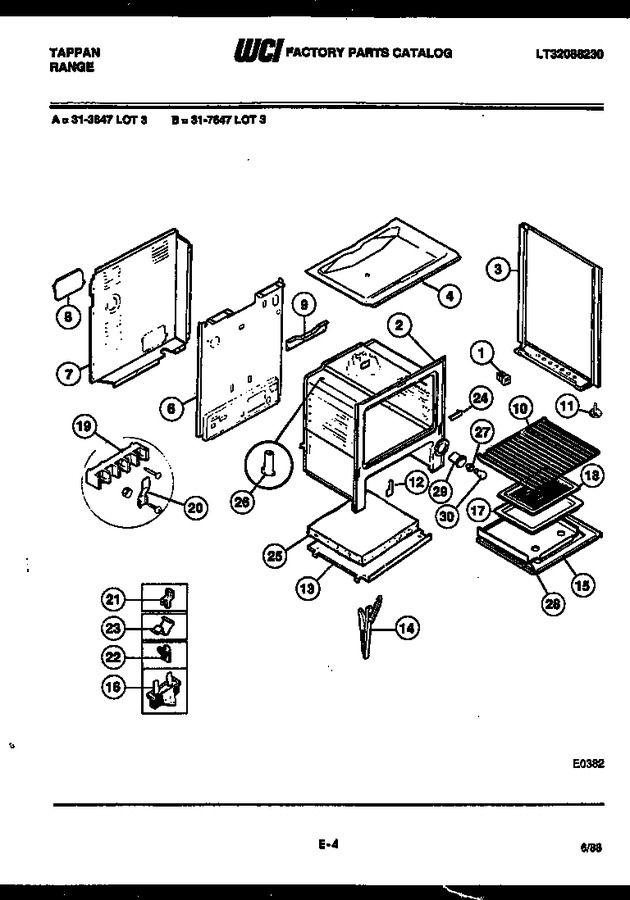

    View Diagram in Separate Window       Print Part List
