HA2010 | TransGlobal : Appliance Model Lookup

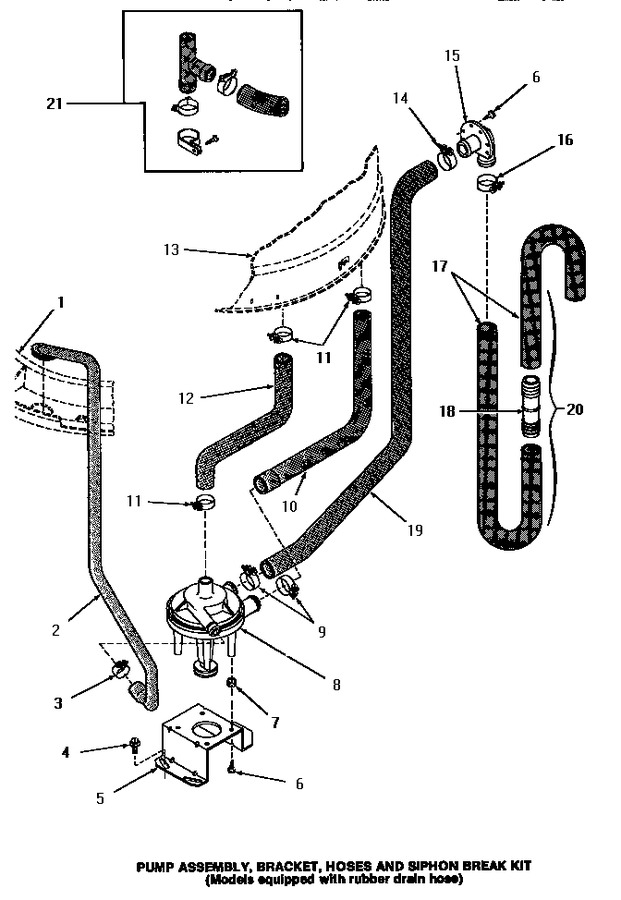

Diagram #	Part Number	Description	Availability	Ships	Price
1	Y00000000	See Note Outer Tub Cover	Appelez-nous	-
2	27232	Hose	Appelez-nous	-
3	WP285655	Hose Clamp (Replaces: 27644)		Immediately	$ 7.55
4	27157	Screw,10-24 X 5/8 Spec	Appelez-nous	-
5	27105	Bracket,pump Mounting			$ 7.45
6	51784	Screw,10b-16 X 1/2 Hex	Appelez-nous	-
7	27063	On-sert	Appelez-nous	-
8	27618	Assy, Pump	Appelez-nous	-
9	WP285655	Hose Clamp (Replaces: 27153)		Immediately	$ 7.55
10	27160	Hose,tub To Pump-drain	Appelez-nous	-
11	WP285655	Clamp,hose (Replaces: 27151)		Immediately	$ 7.55
12	27159	Hose,tub To Pump	Appelez-nous	-
13	Y00000000	See Note Outer Tub	Appelez-nous	-
14	WP285655	Clamp,hose (Replaces: 20391)		Immediately	$ 7.55
15	23553	Elbow,drain Hose-plast			$ 11.23
16	WP285655	Clamp, Hose (Replaces: 20211)		Immediately	$ 7.55
17	28293	Hose,drain		Immediately	$ 111.16
18	WP16272	Coupler,hose (Replaces: 25863)			$ 7.04
19	27161	Hose,pump To Drain Val			$ 66.85
20	Y00000000	See Note Drain Hose And Hose Coupler -- (see Note 1)	Appelez-nous	-
21	76660	Siphon Break Kit (Replaces: 297P3)		Immediately	$ 119.93
