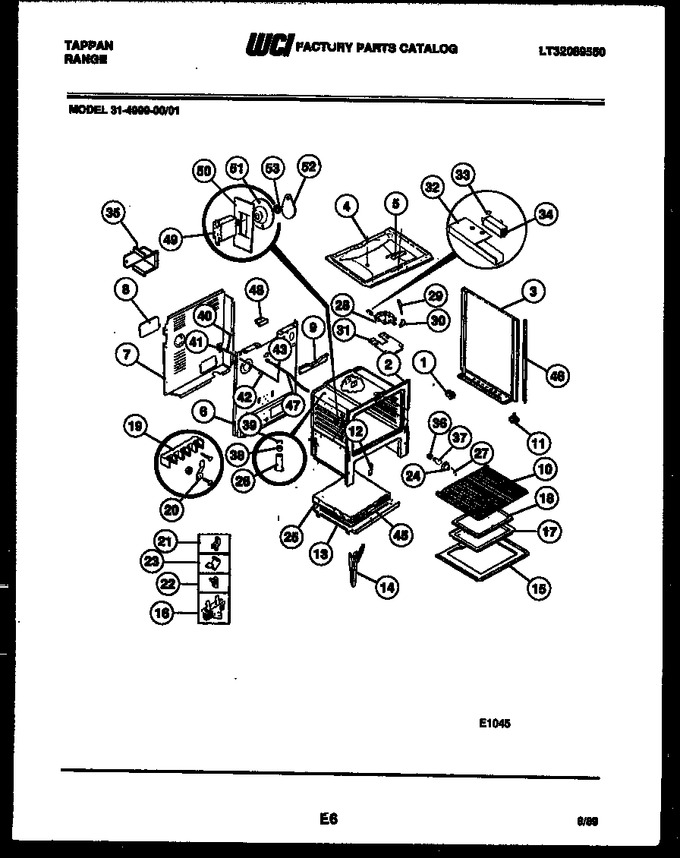

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3014099		Spacer, B/s (8)				$ 3.62
3	3201000		Panel B/s Lh-black		Appelez-nous	-
3	3200792		Panel B/s Lh-white		Appelez-nous	-
4	3051109		Burner Box		Appelez-nous	-
5	3131101		Cover, Plate		Appelez-nous	-
6	3203082		Back-main		Appelez-nous	-
7	3203549		Shield-lower Wall		Appelez-nous	-
8	3203405		Cover-lower Access		Appelez-nous	-
10	3131973		Rack, Oven (2)		Appelez-nous	-
11	3203397		Screw, Level (4)		Appelez-nous	-
12	3131570		Cover-hinge Cutout (2)				$ 7.35
13	3200825		Shield-wool Lower		Appelez-nous	-
14	3051414		Channel, Door Hinge (2)		Appelez-nous	-
15	3203540		Bottom Oven		Appelez-nous	-
16	3051385		Fuse-thermal Cutout		Appelez-nous	-
17	3013568		Broiler Pan		Appelez-nous	-
18	3131356		Insert, Broiler Pan		Appelez-nous	-
19	3161116		Terminal Block		Appelez-nous	-
20	08011708		Ground Strap		Appelez-nous	-
21	3011805		Clip-therm Bulb (2)		Appelez-nous	-
22	3051162		Glide-drawer (2)			Immediately	$ 8.22
23	3051367		Clip-wire		Appelez-nous	-
24	5304524341		Glass - Oven Light Lens   (Replaces: 08011086)			Immediately	$ 14.18
25	3200847		Insulation, Bottom		Appelez-nous	-
26	3051344		Tube-oven Vent		Appelez-nous	-
27	3204585		Wire Glass Retainer		Appelez-nous	-
28	3015361		Latch Door		Appelez-nous	-
29	3131357		Handle, Latch		Appelez-nous	-
30	3203218		Knob-latch		Appelez-nous	-
31	3018004		Shield-latch		Appelez-nous	-
32	3131593		Shield, Bi Metal Catch		Appelez-nous	-
33	3051733		Fastener, Push On (3)		Appelez-nous	-
34	3204937		Switch-latching		Appelez-nous	-
35	3203582		Shield-rear Wall		Appelez-nous	-
36	3014073		Socket-oven Light		Appelez-nous	-
37	3013071		Bulb - Oven Light		Appelez-nous	-
38	08067810		Filter-catalyst		Appelez-nous	-
39	08010606		Retain-catalyst		Appelez-nous	-
40	3202622		Switch-door		Appelez-nous	-
41	3131289		Bracket, Light Switch		Appelez-nous	-
42	3051495		Rod, Light		Appelez-nous	-
43	3011924		Cover-rod		Appelez-nous	-
45	3200848		Shield,heat ,lower		Appelez-nous	-
46	3051326		Trim-vert B/s (2)		Appelez-nous	-
47	3018012		Sensor Probe		Appelez-nous	-
48	3018011		Relay (2)		Appelez-nous	-
49	3018010		Receptacle-probe		Appelez-nous	-
50	3018013		Shield-probe Recept		Appelez-nous	-
51	3018009		Plate-receptacle Mtg		Appelez-nous	-
52	3018001		Cover-probe Recept		Appelez-nous	-
53	479T069P35		Nut		Appelez-nous	-
*25982	3200834		Shield - Heat		Appelez-nous	-
*25982	3204525		Bracket-cable Mtg		Appelez-nous	-
*25982	3203550		Plug-button			Immediately	$ 15.22
*25982	3934056		Anti-tip Kit		Appelez-nous	-
*25982	3018670		Probe - Roast		Appelez-nous	-
27A	3200833		Insulation-wrap (non-illustrated)		Appelez-nous	-
27B	3204582		Insulation-back (non-illustrated)		Appelez-nous	-
27C	3131903		Bumper				$ 55.36
27D	3131143		Screw - Hng Mtg (6) (non-illustrated)		Appelez-nous	-
27E	08067783		Nut, Hex, Brass (6) (non-illustrated)		Appelez-nous	-
30A	08013188		Screw, Set, 10-24 X 3/16, Latch Knob		Appelez-nous	-
3A	3200789		Panel B/s Rh-white		Appelez-nous	-
3A	3201001		Panel B/s Rh-black		Appelez-nous	-
46A	3131304		Insulation-top (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
