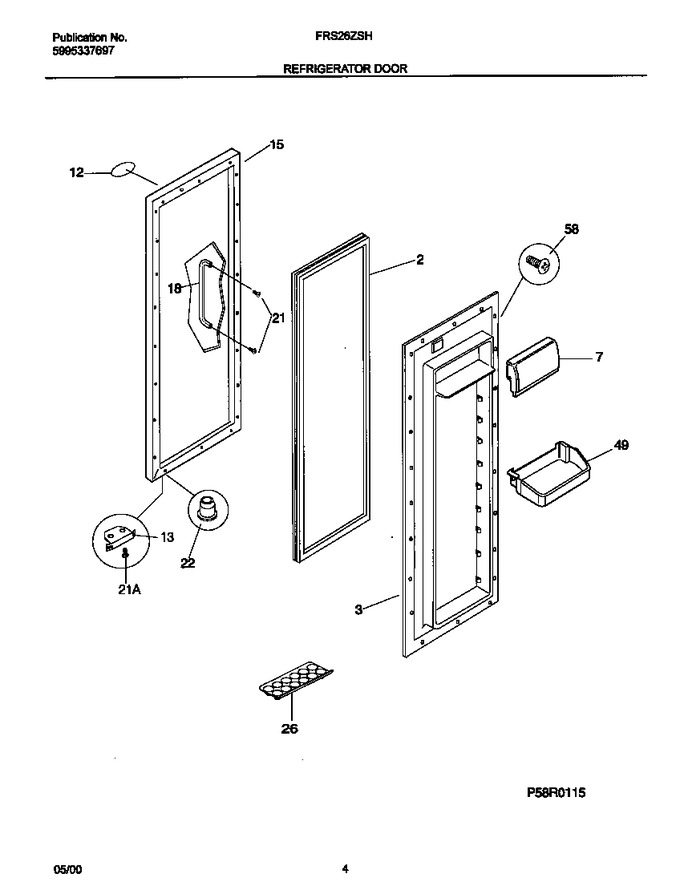

03 - Ref Door
04 - Cabinet
05 - Shelves
06 - Controls
07 - System
08 - Ice And Water Disp
09 - Ice Container
10 - Ice Maker
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 215734314 | Gasket-refr Door, White, Magnetic |
|
$ 243.34 | |||||
| 3 | 215403201 | Panel-inner Door, Refr |
|
- | |||||
| 7 | 5304404909 | Door-dairy |
|
- | |||||
| 12 | 218395402 | Nameplate, White |
|
- | |||||
| 13 | 5303289522 | Door Stop |
|
$ 40.17 | |||||
| 15 | 218631600 | Panel-refr Door, Stainless Steel, W/foam Insulatn |
|
- | |||||
| 18 | 218756501 | Handle-door, Stainless Steel, With Insert |
|
- | |||||
| 21 | 218578600 | Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4 |
|
$ 8.08 | |||||
| 21 | 218709100 | Screw-handle Mtg,hex Head ,10-32 X 0.500 |
|
- | |||||
| 22 | 5303289320 | Bearing-hinge |
|
$ 19.69 | |||||
| 26 | 215817806 | Tray-egg |
|
$ 13.46 | |||||
| 49 | 218592303 | Bin-door, ``mongo`` |
|
- | |||||
| 58 | 218781101 | Screw,pan Head ,8-18 X 0.625 (Replaces: 218781100) |
|
$ 15.60 | |||||
| *33444 | 01300019EA | Cleaner, Stainless Steel (Replaces: 218490900) |
|
Immediately | $ 21.27 | ||||
| *33445 | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 |
