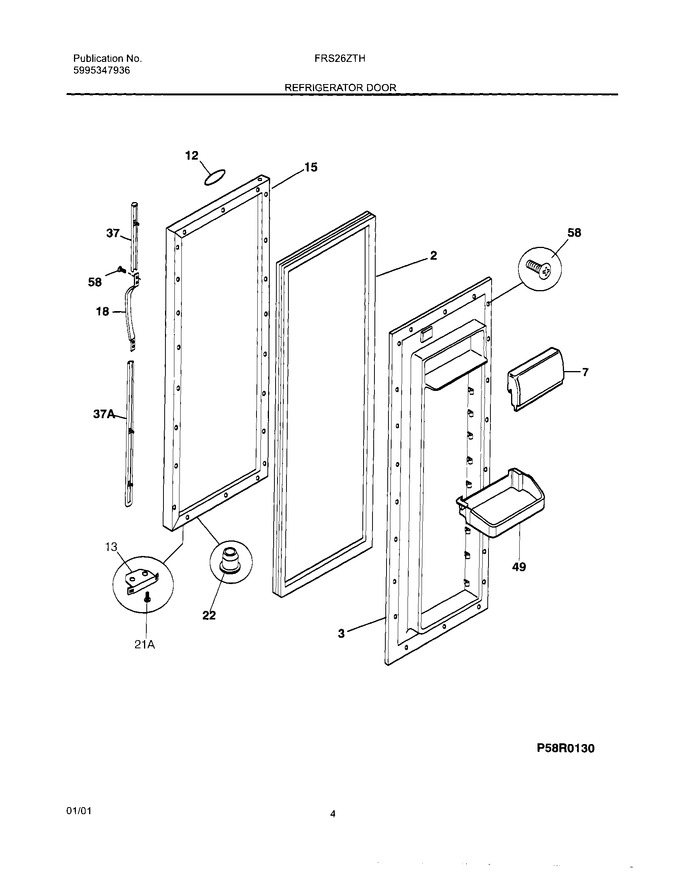

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	215734324		Gasket-refr Door, Black, Magnetic				$ 242.92
3	215403201		Panel-inner Door, Refr		Appelez-nous	-
7	5303304563		Door-dairy		Appelez-nous	-
12	218364006		Frame-nameplate, Black		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
15	5303918163		Panel-ext Ref Door,black ,w/foam Insulatn		Appelez-nous	-
18	218762703		Handle-door,black				$ 67.04
21	218578600		Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4				$ 8.08
22	5303289320		Bearing-hinge				$ 19.69
37	218676003		Band-decorative, Gold				$ 47.11
37	218811627		Trim-handle,black ,lower ,w/gold Band ,and Snap Lock		Appelez-nous	-
37	215782300		Lock-handle Trim,snap-in				$ 34.49
37	218811628		Trim-handle,black ,upper ,w/gold Band ,and Snap Lock		Appelez-nous	-
49	218592325		Bin-door,2-liter				$ 112.51
58	218781101		Screw,pan Head ,8-18 X 0.625   (Replaces: 218781100)				$ 15.60
NI	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
NI	215008606		Label-nameplate,black		Appelez-nous	-
NI	5315340712		Tape,adhesive ,12`` Long ,foam ,double-faced		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
