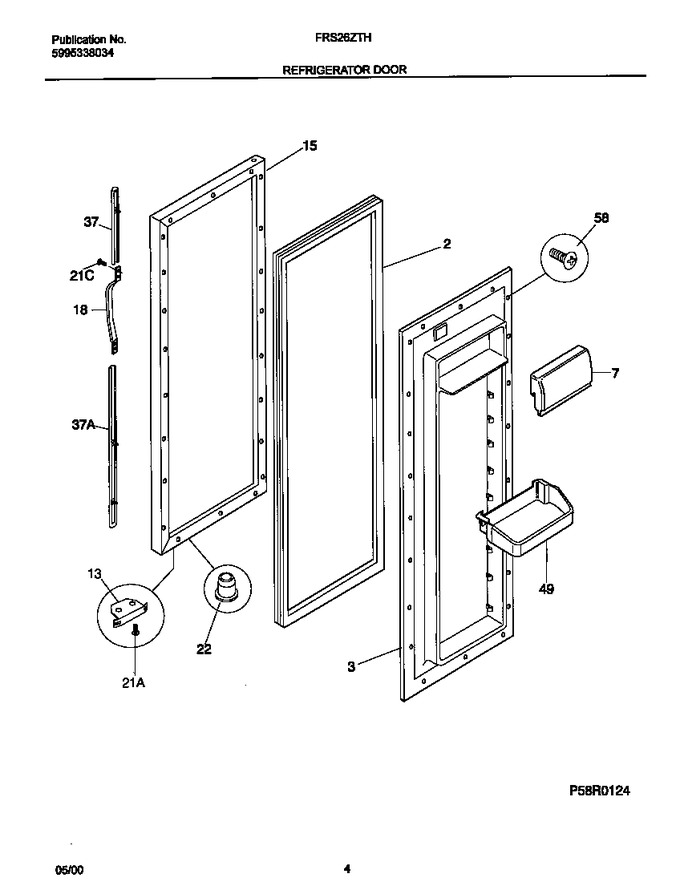

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 215734314 | Gasket-refr Door, White, Magnetic |
|
$ 243.34 | |||||
| 3 | 215403201 | Panel-inner Door, Refr |
|
- | |||||
| 7 | 5303304563 | Door-dairy |
|
- | |||||
| 13 | 5303289522 | Door Stop |
|
$ 40.17 | |||||
| 15 | 5303918166 | Panel-ext Ref Door,almond ,w/foam Insulatn |
|
- | |||||
| 18 | 218762704 | Handle-door, Almond |
|
- | |||||
| 21 | 218252201 | Screw,8 Truss Hd ,10-32ca X 0.500 (Replaces: 218252200) |
|
Immediately | $ 14.18 | ||||
| 21 | 218578600 | Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4 |
|
$ 8.08 | |||||
| 22 | 5303289320 | Bearing-hinge |
|
$ 19.69 | |||||
| 37 | 215867065 | Trim-handle,almond ,upper ,w/dec Gold Band,and Snap Lock |
|
- | |||||
| 37 | 215867062 | Trim-handle,almond ,lower ,w/dec Gold Band,and Snap Lock |
|
$ 114.03 | |||||
| 49 | 218592325 | Bin-door,2-liter |
|
$ 112.51 | |||||
| 58 | 218781101 | Screw,pan Head ,8-18 X 0.625 (Replaces: 218781100) |
|
$ 15.60 | |||||
| *61442 | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 | |||||
| 37A | 215782300 | Lock-handle Trim,snap-in |
|
$ 34.49 | |||||
| 37B | 218676003 | Band-decorative, Gold |
|
$ 47.11 |
