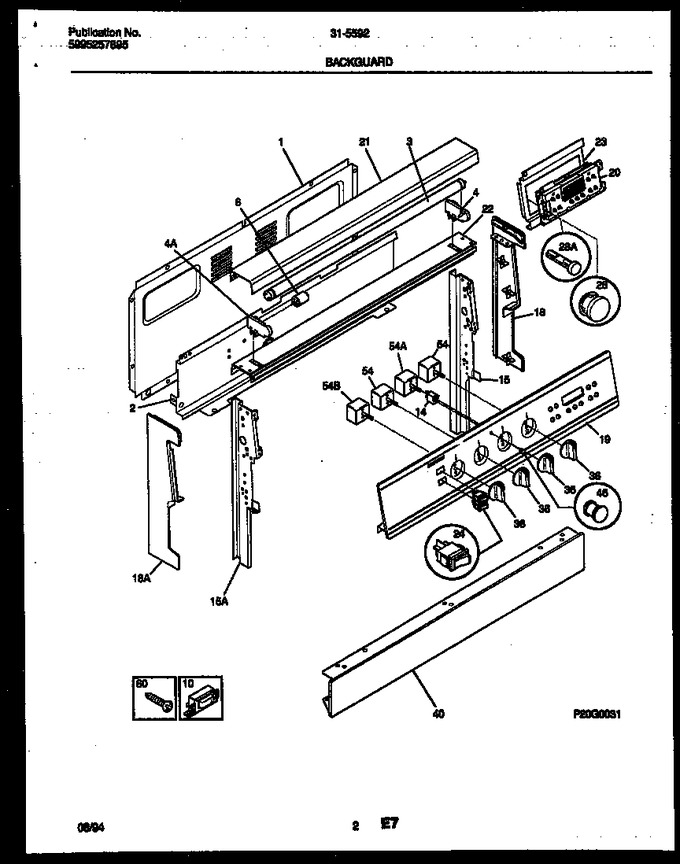

02 - Backguard


04 - Body Parts


05 - Body Parts


06 - Cooktop And Drawer Parts


08 - Door Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316015701		Shield-backguard, Rear Wall		Appelez-nous	-
2	316015905		Shield-backguard, Inner		Appelez-nous	-
3	3131275		Lamp-fluorescent, Backguard				$ 49.40
4	316008200		Receptacle-lamp, Rh		Appelez-nous	-
6	3206218		Starter-lamp				$ 54.08
10	5303051115		Ballast-lamp		Appelez-nous	-
14	316022502		Light/lamp, Indicator, 250 V, (3)		Appelez-nous	-
15	316023102		Support-backguard, Rh		Appelez-nous	-
18	316015400		End Cap, Rh				$ 43.58
19	316014708		Panel-control, Metal		Appelez-nous	-
20	316037000		Clock/timer, Eoc		Appelez-nous	-
21	316015300		Trim-canopy/shield, Black		Appelez-nous	-
22	316015500		Support, Receptacle		Appelez-nous	-
23	316015003		Bracket-clock Mtg		Appelez-nous	-
24	5304527841		Switch-light/lamp, Rocker, Black, (2)   (Replaces: 316005602)			Immediately	$ 11.38
28	316015102		Push Button, Clock/timer/eoc, Black				$ 50.35
36	316015200		Knob-control, (4)		Appelez-nous	-
40	316009254		Panel-manifold		Appelez-nous	-
46	316040200		Lens-light/lamp, Indicator, Amber		Appelez-nous	-
54	5303935086		Switch-6`` Element   (Replaces: 316021500)			Immediately	$ 51.95
60	5303281584		Screw, Truss Head, 8-18 X 1/2		Appelez-nous	-
*10611	316001321		Harness-wiring, Backguard		Appelez-nous	-
15A	316023103		Support-backguard, Lh		Appelez-nous	-
15B	5303288574		Screw, Truss Head, 8-10 X 3/8 (non-illustrated)		Appelez-nous	-
18A	316015401		End Cap, Lh		Appelez-nous	-
28A	316036900		Shaft-push Button, Clock/timer/eoc, (11)				$ 11.24
4A	316008201		Receptacle-lamp, Lh		Appelez-nous	-
54A	316436001		Switch-8`` Element   (Replaces: 316021501)			Immediately	$ 51.68
54B	316023700		Switch-dual Element		Appelez-nous	-
