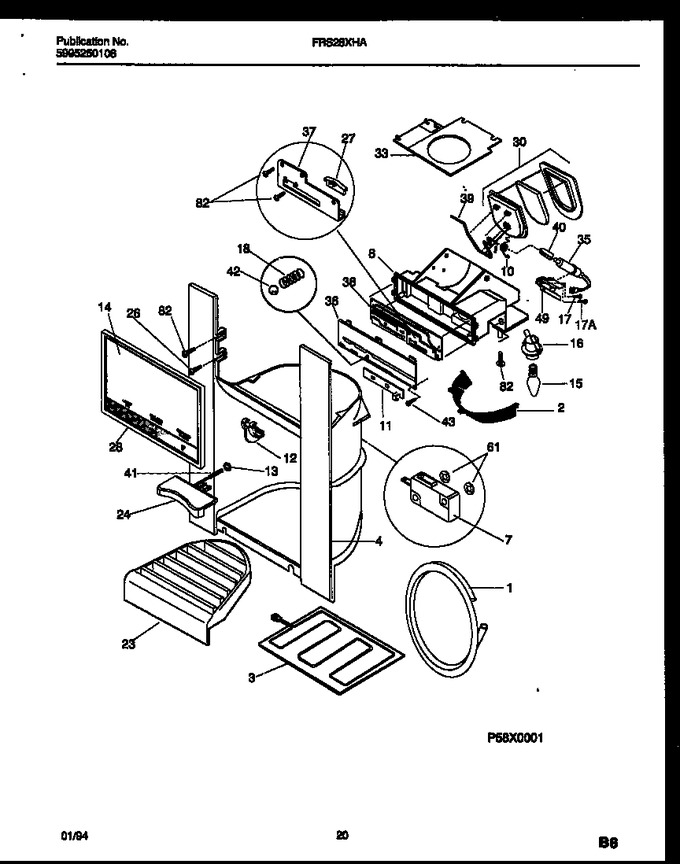

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
39	215793700		Wire-ice Door		Appelez-nous	-
40	215794300		Yoke-heat Motor		Appelez-nous	-
41	215765400		Spring-actuator				$ 78.96
42	215756000		Ball		Appelez-nous	-
43	215760300		Screw,4 X 3/8				$ 9.35
49	215794000		Bracket-heat Motor				$ 34.81
61	215766000		Ring-retainer,micro Switch				$ 34.40
82	215296300		Screw,plask H/l,6 X 3/8		Appelez-nous	-
*91024	215781700		Clip-tube		Appelez-nous	-
*91024	215944300		Shield-micro Switch				$ 58.85
38A	215630800		Washer, Ext Tooth Lock, Light Switch, (non-illustrated)		Appelez-nous	-
38B	215631000		Nut, Hex, Light Switch (non-illustrated)		Appelez-nous	-
38C	215763900		Cap-light Switch (non-illustrated)		Appelez-nous	-
