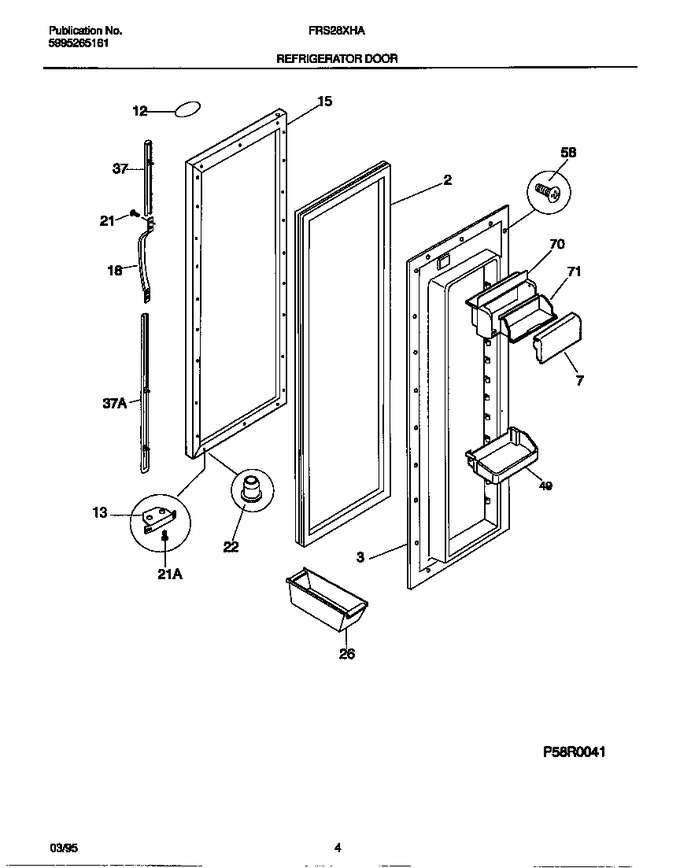

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	215734316		Gasket-refr Door, White, Magnetic		Appelez-nous	-
3	215434501		Panel-inner Door, Refr		Appelez-nous	-
7	215287505		Door-dairy		Appelez-nous	-
12	215008601		Label-nameplate, White		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
15	5303917512		Panel-refr Door, White, W/foam Insulatn		Appelez-nous	-
18	218025201		Handle-door, White, Soft Grip		Appelez-nous	-
21	218843801		Screw   (Replaces: 5303001001)				$ 14.41
21	215836900		Screw-door Stop Mtg, Truss Head-cr, 10 Ab X 1/2		Appelez-nous	-
22	5303289320		Bearing-hinge				$ 19.69
26	5303288969		Container-egg		Appelez-nous	-
37	215782300		Lock-handle Trim, Snap-on (not Illustrated)				$ 34.49
37	215867007		Trim-handle, White, Upper, W/chrome Band, And Snap Lock		Appelez-nous	-
37	215867001		Trim-handle, 29.84``, White, Lower, W/chrome Band, And Sn		Appelez-nous	-
49	215398905		Bin-door		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
70	215278103		Housing-dairy Compt		Appelez-nous	-
71	215288302		Tray-dairy Compt, White		Appelez-nous	-
*16442	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
