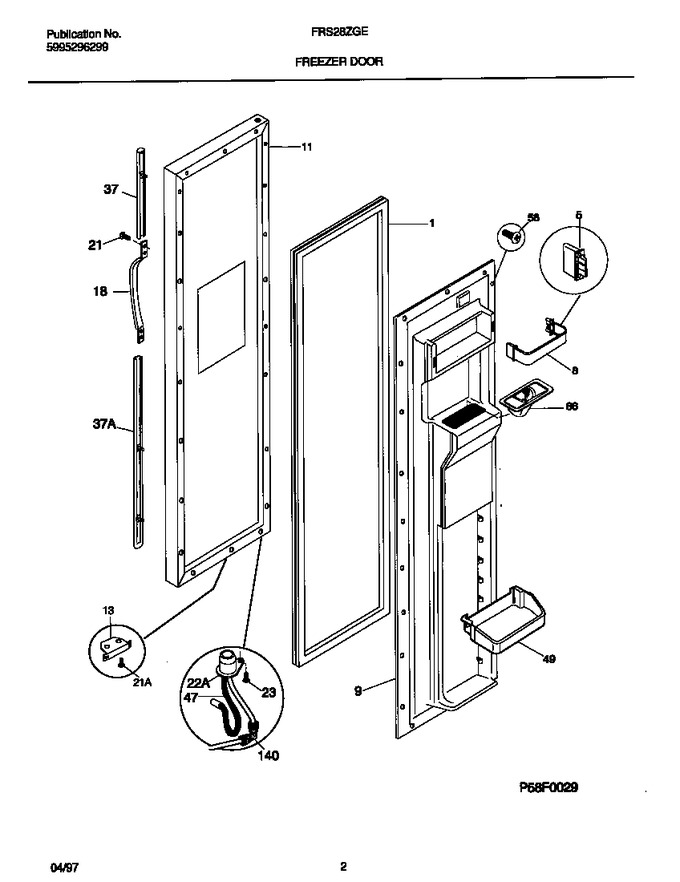

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215734325		Gasket-frzr Door, Black, Magnetic		Appelez-nous	-
5	5303288950		Support-door Rack, Rh/lh				$ 51.19
8	215812901		Rack-door, W/end Caps		Appelez-nous	-
9	218510301		Panel-inner Door, Frzr		Appelez-nous	-
11	5303917734		Panel-frzr Door, Black, W/foam Insulatn		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
18	218025205		Handle-door, Metallic Gray, Soft Grip		Appelez-nous	-
21	218578600		Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4, Bumper M				$ 8.08
21	218843801		Screw   (Replaces: 5303001001)				$ 14.41
22	215615300		Bushing-door,bronze		Appelez-nous	-
23	5303001020		Screw, Cr Flat Head, 8-32(d) X 1/2		Appelez-nous	-
37	215867063		Trim-handle, Metallic Gray, Lower, W/dec Gold Band, And		Appelez-nous	-
37	215867069		Trim-handle, Metallic Gray, Upper, W/gold Band, And Snap		Appelez-nous	-
47	218741300		Harness-wiring, Frzr Door				$ 117.94
49	218592301		Bin-door, ``mongo``				$ 146.20
58	218749600		Screw, 10 Pan Head, 8-18 X 0.500				$ 5.15
68	218495200		Chute-ice		Appelez-nous	-
140	218518700		Elbow-water Tube				$ 61.22
*02040	215598900		Washer-flat, .691 X 1 X .05, Zinc, I&w Hinge Brkt		Appelez-nous	-
*02041	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
37A	215940700		Lock-handle Trim, Stick-on (not Illustrated)		Appelez-nous	-
37B	215782300		Lock-handle Trim, Snap-in (not Illustrated)				$ 34.49
37C	218676002		Band-decorative, Light Gold (not Illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
