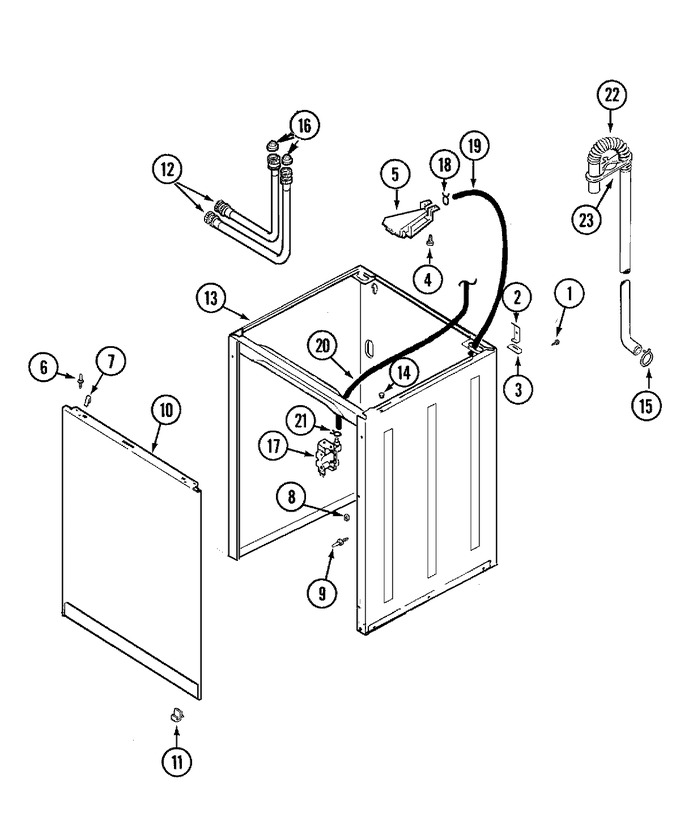

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Screw   (Replaces: 25-7732)	10		Immediately	$ 7.07
2	35-2846		Hinge, Cabinet Top	10			$ 22.94
3	35-4128		Pad, Hinge	10	Appelez-nous	-
4	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
5	12002749		Hose, Flume Kit	26			$ 25.97
5	21001760		Flume Assembly /water Diverter	10			$ 5.84
6	53-0643		Pin, Locator	10	Appelez-nous	-
7	WP25-7220		Clip, Cabinet Top   (Replaces: 25-7220)	10			$ 10.77
8	WP3400029		Nut, Washered Lock   (Replaces: Y311426)	10		Immediately	$ 6.98
9	53-0643		Pin, Locator	10	Appelez-nous	-
9	53-0200		Sleeve, Locator Pin	10	Appelez-nous	-
10	35-2084		Panel, Front (wht)	10	Appelez-nous	-
10	21001281		Damper, Sound Pad	10	Appelez-nous	-
10	21002011		Pad, Cabinet	10	Appelez-nous	-
11	53-0120		Clip, Front Panel	10			$ 11.32
12	WP89503		Hose, 4` Inlet   (Replaces: 33-7891)	10		Immediately	$ 21.68
12	WP89503		Hose, 5` Inlet   (Replaces: 33-7046)	10		Immediately	$ 21.68
13	35-2106		Cabinet Assy. (wht)	10	Appelez-nous	-
14	33-2653		Bumper, Cabinet	10	Appelez-nous	-
15	WP285655		Clamp, Discharge Hose   (Replaces: 25-7080)	10		Immediately	$ 7.55
16	33-4264N		Strainer & Washer Kit	10	Appelez-nous	-
17	22001196		Valve, Water	10			$ 96.11
18	WP596669		Clamp   (Replaces: 25-7867)	10		Immediately	$ 7.56
19	12002749		Hose, Flume/diverter (rubber)   (Replaces: 35-2378)	10			$ 25.97
19	12002749		Hose, Flume Kit	26			$ 25.97
20	21001749		Hose, Pressure Switch	10	Appelez-nous	-
21	WP596669		Clamp, Pressure Switch Hose   (Replaces: 25-7796)	10		Immediately	$ 7.56
22	WP21001872		Hose, Drain (no Cuff)   (Replaces: 21001513)	10			$ 84.44
23	22002701		Retainer, Drain Hose	10	Appelez-nous	-
24	35-1007		Strain Relief	10	Appelez-nous	-
24	21001644		Assembly, Lead & Sleeve	10	Appelez-nous	-
