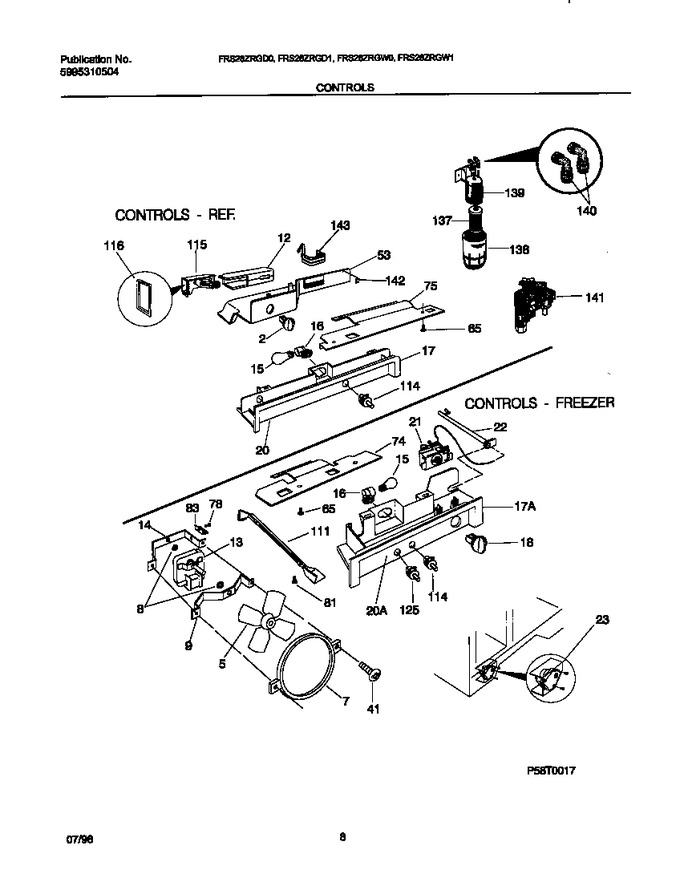

05 - Controls


06 - Shelves


07 - System


08 - Ice Dispenser


09 - Ice Container


10 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	215028605		Knob-damper Control		Appelez-nous	-
5	5308001110		Fan Blade,red		Appelez-nous	-
7	5308011124		Ring-fan Orifice		Appelez-nous	-
8	5301157666		Bushing-motor Mtg,(2)		Appelez-nous	-
9	5303205118		Bracket-motor Mtg, Front		Appelez-nous	-
12	215809600		Diffuser-air		Appelez-nous	-
13	215426200		Motor-evap Fan		Appelez-nous	-
14	5303205119		Bracket-motor Mtg, Rear		Appelez-nous	-
15	5303000979		Light Bulb/lamp,40 W		Appelez-nous	-
16	241559801		Socket-light/lamp   (Replaces: 5303289050)				$ 72.68
17	5303296581		Control Box, Frzr				$ 64.25
17	5303296805		Control Box, Refr		Appelez-nous	-
18	5303308568		Knob-temp Control, Frzr		Appelez-nous	-
20	5304406100		Label-control Box,refr		Appelez-nous	-
21	5303300027		Control-temperature				$ 117.11
22	5303319683		Housing-temp Sensor, Plastic				$ 27.93
23	215846602		Timer-defrost   (Replaces: 5303321133)			Immediately	$ 28.20
41	5308000039		Screw		Appelez-nous	-
53	215809510		Box-damper Control		Appelez-nous	-
65	5303011361		Pin-mounting,push-in ,plastic		Appelez-nous	-
74	218225800		Cover-light Socket		Appelez-nous	-
75	218465101		Shield-light,refr		Appelez-nous	-
78	5303274237		Screw-bracket, Hex Washer Head, 8-32(ca) X 1/2		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
83	5308011107		Bracket-connector		Appelez-nous	-
111	5303297842		Wireway,frzr		Appelez-nous	-
114	5303289051		Switch-light/lamp,white				$ 26.23
115	215009502		Damper Assy,w/seal		Appelez-nous	-
116	215009400		Seal-damper,foam		Appelez-nous	-
125	215334201		Switch-auger Kill,white				$ 31.87
137	215334201		Switch-auger Kill,white				$ 31.87
138	218657401		Cup-water Filter		Appelez-nous	-
139	218657500		Housing-water Filtr		Appelez-nous	-
140	218518700		Elbow-water Tube				$ 61.22
141	218859701		Valve-water Filter,dual Solenoid ,115v ,w/nut			Immediately	$ 93.29
142	218657701		Knob-indicator, Filter Replment		Appelez-nous	-
143	218696700		Heater-water Filter				$ 46.51
*22942	215474201		Washer,``slinger`` ,nylon ,evap Fan Shaft			Immediately	$ 18.43
*22943	215277000		Cover-defrost Timer, Top		Appelez-nous	-
*22944	5303011259		Screw-timer Mtg,pan Hd ,6-20 X 0.438		Appelez-nous	-
*22945	5303289058		Shield-defrost Timr,btm		Appelez-nous	-
*22946	5303209814		Nut,``u`` Type ,8-15(a) ,fan Mtr Mtg		Appelez-nous	-
*22947	218710300		Wrench-filter				$ 4.54
*22948	218646000		Harness-wiring, Filter Heater		Appelez-nous	-
20A	5303308611		Label-control Box, Frzr		Appelez-nous	-
20B	215188300		Screw-control Box Mtg,hex Head ,8-15a X 1.000,refr/frzr		Appelez-nous	-
