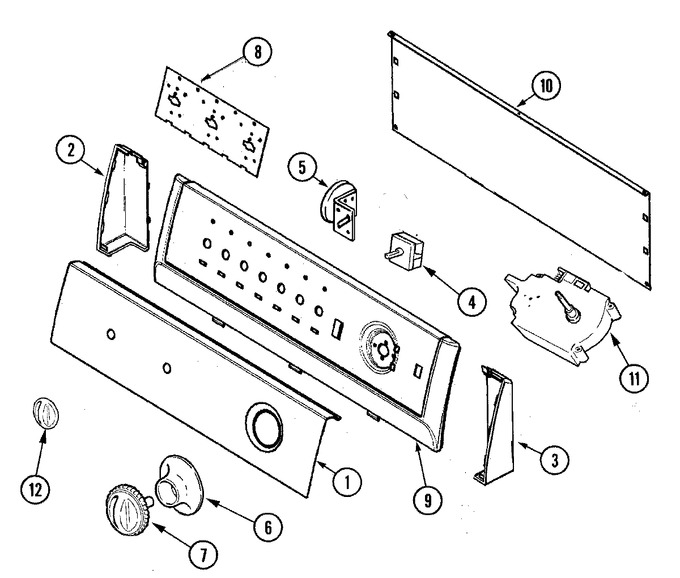

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	21001983		Panel, Control	10	Appelez-nous	-
2	21001519		Endcap (wht-lt)	10	Appelez-nous	-
2	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
3	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
3	21001523		Endcap (wht-rt)	10	Appelez-nous	-
4	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
4	21001226		Switch, Water Temp. 4 Position	10	Appelez-nous	-
5	21001882		Switch, Pressure (emz)	10	Appelez-nous	-
5	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
6	21001984		Skirt, Timer Knob	10			$ 5.65
7	21001985		Knob, Timer (gray)	10			$ 25.36
8	21001603		Shield, Control (3 Pos.)	10	Appelez-nous	-
9	21001965		Frame, Control Panel, Support	10	Appelez-nous	-
10	21001527		Shield, Rear (back Panel)	10	Appelez-nous	-
10	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
11	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
11	21001522		Timer	10			$ 191.63
12	WP21002070		Knob, Selector (gray)   (Replaces: 21001986)	10			$ 20.10
13	21001979		Lead Assembly (dr Switch)	10	Appelez-nous	-
13	21001883		Harness, Wiring	10	Appelez-nous	-
13	21001978		Lead Assembly (ground)	10	Appelez-nous	-
