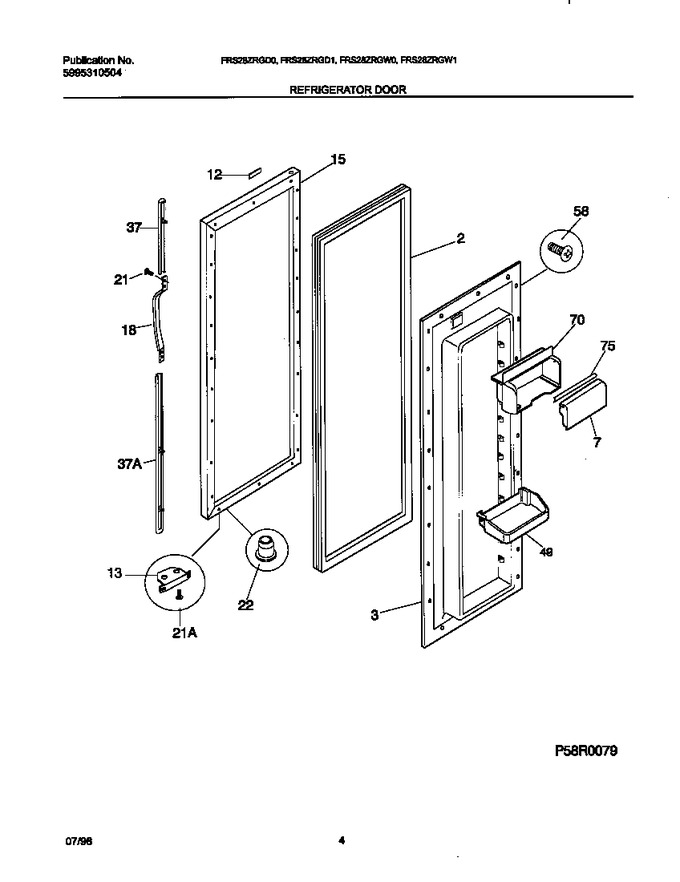

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	215734316		Gasket-refr Door, White, Magnetic		Appelez-nous	-
3	215434501		Panel-inner Door, Refr		Appelez-nous	-
7	218383103		Door-dairy		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
15	5303917512		Panel-refr Door, White, W/foam Insulatn		Appelez-nous	-
18	297311201		Handle-door, White   (Replaces: 218762701)			Immediately	$ 80.60
21	218578600		Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4				$ 8.08
21	218843801		Screw   (Replaces: 5303001001)				$ 14.41
22	5303289320		Bearing-hinge				$ 19.69
37	215867053		Trim-handle, White, Lower, W/chrome Band				$ 70.72
37	218811607		Trim-handle, White, Upper, W/chrome Band		Appelez-nous	-
49	215398907		Bin-door,gallon				$ 152.30
58	218749600		Screw,10 Pan Hd ,8-18 X .5				$ 5.15
70	218383202		Housing-dairy Compt		Appelez-nous	-
75	218716300		Bumper-dairy Door		Appelez-nous	-
*22922	218676001		Band-decorative,chrome				$ 36.17
*22923	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
37A	215782300		Lock-handle Trim,snap-in				$ 34.49
37B	215940700		Lock-handle Trim, Stick-on		Appelez-nous	-
