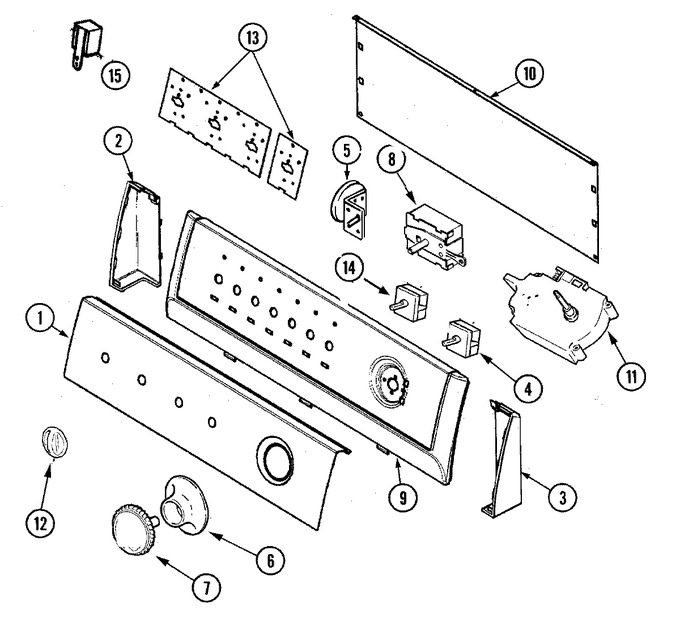

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	21001992		Panel, Control	10	Appelez-nous	-
2	21001519		Endcap (wht-lt)	10	Appelez-nous	-
2	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
3	21001523		Endcap (wht-rt)	10	Appelez-nous	-
3	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
4	21001226		Switch, Water Temp. 4 Position	10	Appelez-nous	-
5	21001882		Switch, Pressure (emz)	10	Appelez-nous	-
6	21001984		Skirt, Timer Knob	10			$ 5.65
7	21001985		Knob, Timer (gray)	10			$ 25.36
8	21001960		Switch, Speed (4 Pos)	10			$ 79.89
9	21001965		Frame, Control Panel, Support	10	Appelez-nous	-
10	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
10	21001527		Shield, Rear (back Panel)	10	Appelez-nous	-
10	WP12990527		Screw, Sems   (Replaces: 25-3457)	10		Immediately	$ 7.15
11	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
11	21001959		Timer	10			$ 192.72
12	WP21002070		Knob, Selector (gray)   (Replaces: 21001986)	10			$ 20.10
13	21001517		Shield, Control (1 Pos.)	10			$ 4.83
13	21001603		Shield, Control (3 Pos.)	10	Appelez-nous	-
14	21001993		Switch, Rotary (4 Pos)	10	Appelez-nous	-
15	53-1639		Buzzer Assy.	10	Appelez-nous	-
16	21001979		Lead Assembly (dr Switch)	10	Appelez-nous	-
16	21001980		Lead Assembly (ground)	10	Appelez-nous	-
16	21001994		Harness, Wiring	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
