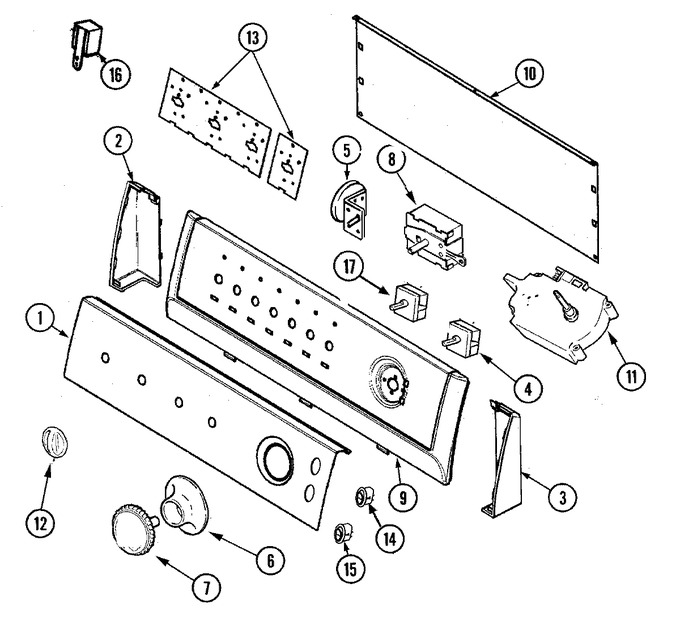

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 21002034 | Panel, Control (wht) | 10 |
|
- | ||||
| 2 | 21001519 | Endcap (wht-lt) | 10 |
|
- | ||||
| 2 | WP90767 | Screw (Replaces: 25-3092) | 10 |
|
Immediately | $ 7.04 | |||
| 3 | WP90767 | Screw (Replaces: 25-3092) | 10 |
|
Immediately | $ 7.04 | |||
| 3 | 21001523 | Endcap (wht-rt) | 10 |
|
- | ||||
| 4 | 21001960 | Switch, Speed (4 Pos) | 10 |
|
$ 79.89 | ||||
| 5 | 21002031 | Switch, Water Level (pressure) | 10 |
|
$ 11.17 | ||||
| 6 | 21001953 | Skirt, Timer Knob (wht) | 10 |
|
- | ||||
| 7 | WP21001972 | Knob, Timer (Replaces: 21001972) | 10 |
|
$ 48.17 | ||||
| 8 | 21002028 | Switch, Water Temp (4 Pos) | 10 |
|
- | ||||
| 9 | 21001965 | Frame, Control Panel, Support | 10 |
|
- | ||||
| 10 | 21001527 | Shield, Rear (back Panel) | 10 |
|
- | ||||
| 11 | 21001959 | Timer | 10 |
|
$ 192.72 | ||||
| 12 | 21001974 | Knob, Selector | 10 |
|
- | ||||
| 13 | 21001517 | Shield, Control (1 Pos.) | 10 |
|
$ 4.83 | ||||
| 13 | 21001603 | Shield, Control (3 Pos.) | 10 |
|
- | ||||
| 14 | WP74010226 | Switch, Rocker (wht) (Replaces: 22003977) | 10 |
|
$ 86.45 | ||||
| 15 | 22003981 | Switch, Momentary Rocker (wht) | 10 |
|
$ 14.20 | ||||
| 16 | 53-1639 | Buzzer Assy. | 10 |
|
- | ||||
| 17 | 31001443 | Switch, Two Pos (on/off)rotary | 10 |
|
- | ||||
| 18 | 21002029 | Harness, Wiring | 10 |
|
- | ||||
| 18 | 21001978 | Lead Assembly (ground) | 10 |
|
- | ||||
| 18 | 21001979 | Lead Assembly (dr Switch) | 10 |
|
- | ||||
| 18 | 21001981 | Lead Assembly (buzzer) | 10 |
|
- |
