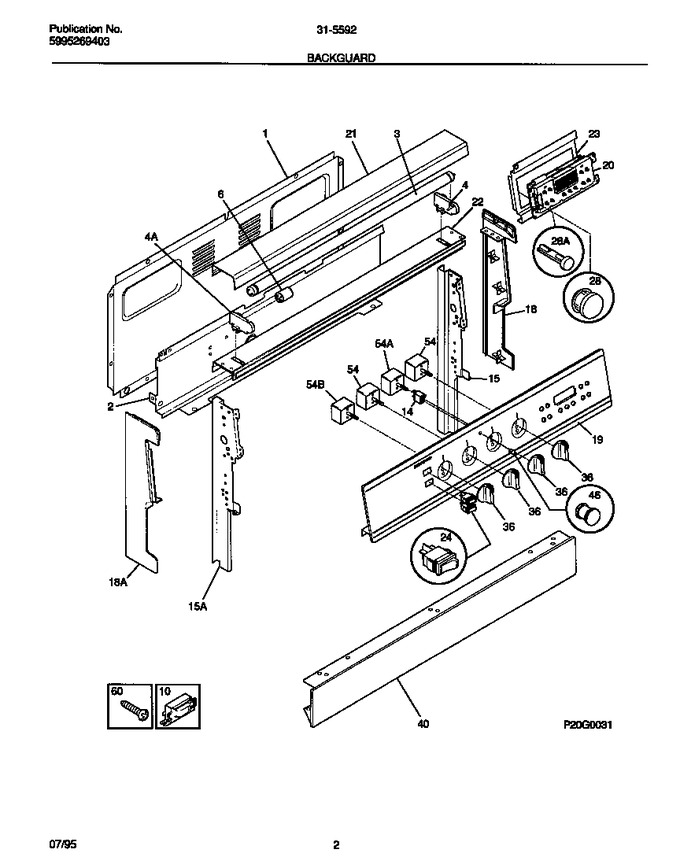

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316081601 | Shield-backguard, Rear Wall |
|
- | |||||
| 2 | 316015905 | Shield-backguard, Inner |
|
- | |||||
| 3 | 3131275 | Lamp-fluorescent, Backguard |
|
$ 49.40 | |||||
| 4 | 316008200 | Receptacle-lamp, Rh |
|
- | |||||
| 6 | 3206218 | Starter-lamp |
|
$ 54.08 | |||||
| 10 | 5303051115 | Ballast-lamp |
|
- | |||||
| 14 | 316022503 | Light-lamp, Indicator, 250 V |
|
Immediately | $ 70.16 | ||||
| 15 | 316023110 | Support-backguard, Rh |
|
- | |||||
| 18 | 316015400 | End Cap, Rh |
|
$ 43.58 | |||||
| 19 | 316014708 | Panel-control, Metal |
|
- | |||||
| 20 | 316064500 | Clock/timer, Eoc |
|
- | |||||
| 21 | 316015300 | Trim-canopy/shield, Black |
|
- | |||||
| 22 | 316015500 | Support, Receptacle |
|
- | |||||
| 23 | 316015007 | Bracket-clock Mtg |
|
- | |||||
| 24 | 5304527841 | Switch-light/lamp, Rocker Type, Black, (2) (Replaces: 316005602) |
|
Immediately | $ 11.38 | ||||
| 28 | 316015102 | Push Button, Clock/timer/eoc, Black |
|
$ 50.35 | |||||
| 36 | 316015200 | Knob-control, (4) |
|
- | |||||
| 40 | 316009254 | Panel-manifold |
|
- | |||||
| 46 | 316040200 | Lens-light/lamp, Indicator, Amber |
|
- | |||||
| 54 | 5303935086 | Switch-6`` Element (Replaces: 316021500) |
|
Immediately | $ 51.95 | ||||
| 60 | 5303288574 | Screw, Truss Head, 8-10 X 3/8 |
|
- | |||||
| *87440 | 316021109 | Screw,hex, 8-18 X 3/8, Back\bodyside (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| *87441 | 316034800 | Light/lamp, Ind, Hot Surface |
|
- | |||||
| *87442 | 316035700 | Lens-light/lamp, Indicator |
|
- | |||||
| *87443 | 5303281584 | Screw, Truss Head, 8-18 X 1/2 |
|
- | |||||
| *87444 | 5303292005 | Screw-switch Mtg, 8-32 X 3/16, Sw To Cntl Pnl, (8) |
|
- | |||||
| 15A | 316023111 | Support-backguard, Lh |
|
- | |||||
| 18A | 316015401 | End Cap, Lh |
|
- | |||||
| 28A | 316036900 | Shaft-push Button, Clock/timer/eoc, (11) |
|
$ 11.24 | |||||
| 4A | 316008201 | Receptacle-lamp, Lh |
|
- | |||||
| 54A | 316436001 | Switch-8`` Element (Replaces: 316021501) |
|
Immediately | $ 51.68 | ||||
| 54B | 316023700 | Switch-dual Element |
|
- |
