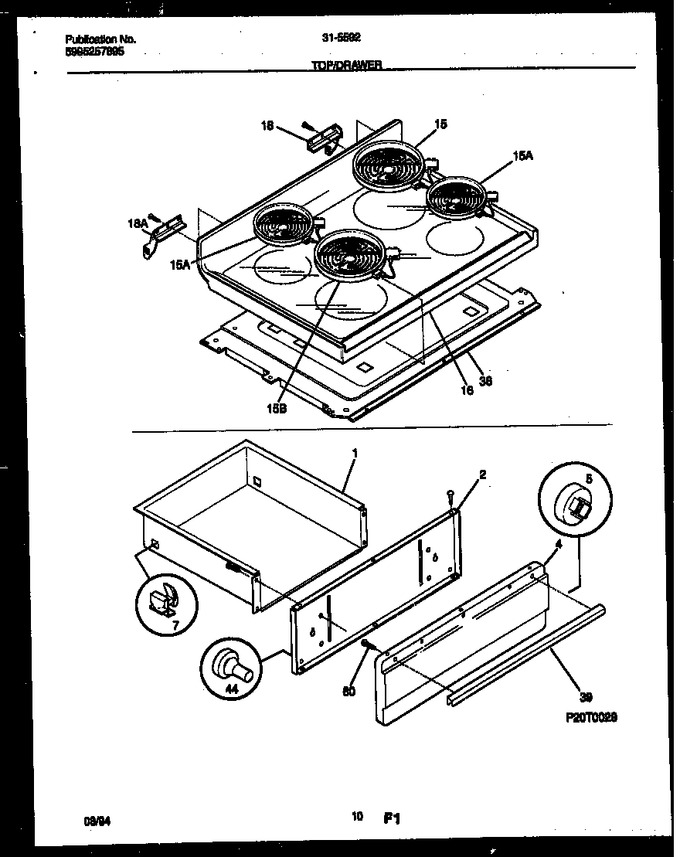

SELECT A DIAGRAM

02 - Backguard


04 - Body Parts


05 - Body Parts


06 - Cooktop And Drawer Parts


08 - Door Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	3131975		Shield-panel		Appelez-nous	-
4	316056207		Panel-drawer, Black		Appelez-nous	-
5	3131387		Fastener-spacer, Push-in Nut, Nylon		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
15	316049601		Element-surface, Coil, Large/8 Inch, W/ Limit Switch		Appelez-nous	-
16	316035504		Main Top Assy, Glass/steel, Enamel, Black		Appelez-nous	-
18	5303273062		Hinge-main Top (rh)		Appelez-nous	-
36	316033601		Panel-element Mtg, Glass Top		Appelez-nous	-
39	3206424		Handle-drawer, Black		Appelez-nous	-
44	3131903		Bumper				$ 55.36
60	5303281651		Screw-drawer Handle, 8 Truss Head, 10-16 X 1/2		Appelez-nous	-
*10612	5309951550		Cleaner-cooktop		Appelez-nous	-
*10612	5303281584		Screw, Truss Head, 8-18 X 1/2		Appelez-nous	-
15A	316049600		Element-surface, Coil, Small/6 Inch, W/ Limit Switch				$ 151.67
15B	316049700		Element-surface, Dual Coil, 8 Inch, W/limit Switch		Appelez-nous	-
15C	5303305629		Limiter Switch, Large/8 Inch (non-illustrated)		Appelez-nous	-
15D	5303305631		Limiter Switch, Small/6 Inch (non-illustrated)		Appelez-nous	-
15E	5303305630		Limiter Switch Lge/8 In, Dual Coil (non-illustrated)		Appelez-nous	-
16A	316034800		Light/lamp, Ind, Hot Surface (non-illustrated)		Appelez-nous	-
16B	316035700		Lens-light/lamp, Indicator (non-illustrated)		Appelez-nous	-
18A	5303273063		Hinge-main Top (lh)				$ 48.41
18B	5303288567		Screw, 8-18 X 3/8, (4) (non-illustrated)		Appelez-nous	-
36A	316023300		Clip-spring, Element Mtg (non-illustrated)		Appelez-nous	-
36B	316041000		Stud-index, Top Element (non-illustrated)		Appelez-nous	-
4A	08067785		Screw, Hex Washer Head, 8-18(ab) X 1/2 (non-illustrated)		Appelez-nous	-
