Diagram # Part Number Description Series Availability Ships Price Add to Cart
001 R0150148 Assy,inner Doorxxx Appelez-nous -
002 12526201 Linkage, Dr Latch Appelez-nous -
003 M0230815 Screw Appelez-nous -
004 M0274066 Washer, Nylon Appelez-nous -
005 M0272503 Washer Appelez-nous -
006 12472202 Door Ring Weld, E Ct Appelez-nous -
006 12472204 Door Ring Weld, E Ct Appelez-nous -
007 10966601 Gasket, Neoprene Appelez-nous -
008 12126805 Plate, Hinge (upper) Appelez-nous -
009 5210001001 Bushing, Nylon Special Order $ 5.44

010 12126806 Plate, Hinge (lower) Appelez-nous -
011 R0150147 Retainer, Lens Appelez-nous -
012 12133804 Window-outer Appelez-nous -
013 12210804 Energy, Strip Appelez-nous -
014 W11233072 Screw, Tc   (Replaces: M0230518) In-Stock Immediately $ 12.62

015 R9900566 Door Kit(solid Door Units) Appelez-nous -
015 R9900567 Door, Outer Appelez-nous -
016 12133901 Handle-door Appelez-nous -
017 12210803 Energy, Strip Appelez-nous -
018 12114401 Brkt-door Latch Appelez-nous -
019 C8893502 Spring, Door Latch Appelez-nous -
020 WP489128 Screw   (Replaces: M0253516) Special Order $ 9.79

021 M0800501 Spacer Appelez-nous -
022 12127001 Pin-latch Appelez-nous -
023 12126901 Latch-door Special Order $ 7.32


    View Diagram in Separate Window     Print Icon   Print Part List

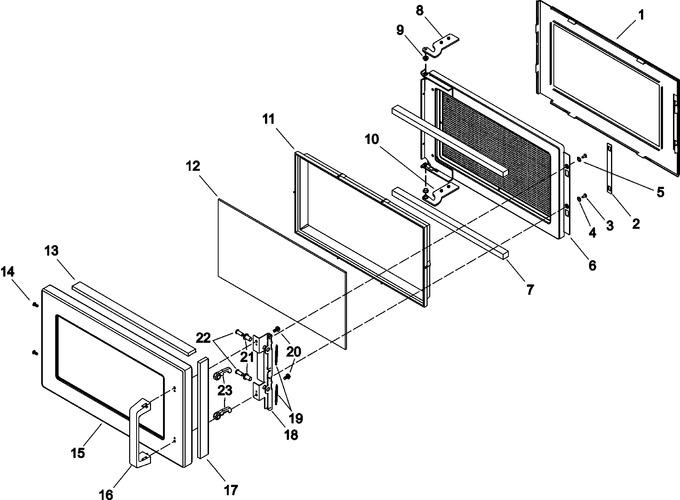

Diagram for HDC18 (BOM P1330504M)
