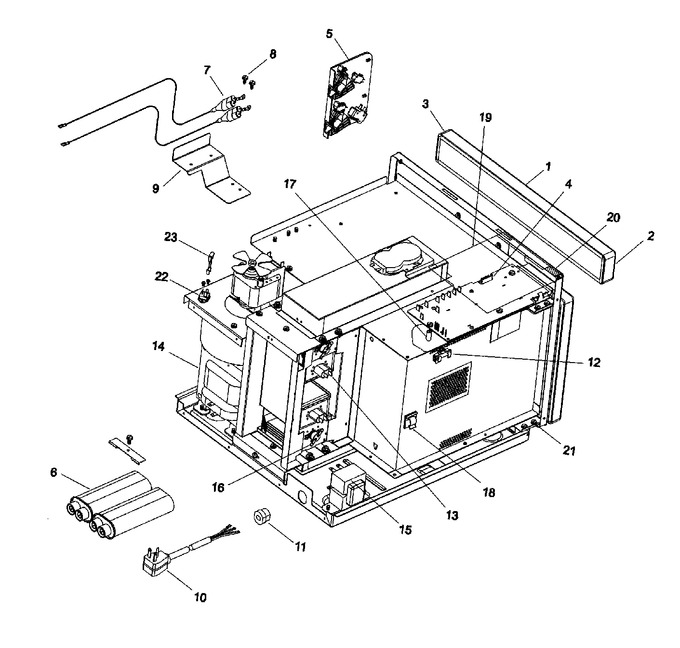

SELECT A DIAGRAM

01 - Door


02 - Wiring Information


03 - Supplemental Information


04 - Tray, Grease Shield, Cabinet,


05 - Electrical Components


06 - Fuses, Antennas, Blower, Ducts, Cavity


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	59001213		Assy, Touch Panel		Appelez-nous	-
001	M0216517		Screw		Appelez-nous	-
002	12131001		Endcap-esc (right)		Appelez-nous	-
003	12131002		Endcap-esc (left)		Appelez-nous	-
004	M0227333		Screw,tc		Appelez-nous	-
004	12002446		Kit,hv/lv Board   (Replaces: R0131381)		Appelez-nous	-
005	12538901Q		Assy,interlock Switch		Appelez-nous	-
005	M0237906		Screw-hi-lo		Appelez-nous	-
006	12132501		Strap-capacitor		Appelez-nous	-
006	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
006	59001651		Capacitor-.82   (Replaces: D8547941)				$ 43.15
007	R9800022		Kit, Diode				$ 97.11
008	WP90767		Screw   (Replaces: M0216529)			Immediately	$ 7.04
009	12529501		Bracket, Diode		Appelez-nous	-
009	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
010	R0131016		Power Cord Kit		Appelez-nous	-
011	M0370003		Strain Relief		Appelez-nous	-
012	B5795302		Thermal Cut Out		Appelez-nous	-
012	WP488234		Screw   (Replaces: M0234422)				$ 6.07
013	10489404		Magnetron-t		Appelez-nous	-
014	12136102		Transformer- Hv		Appelez-nous	-
014	M0251028		Screw, T.c.		Appelez-nous	-
015	C8901509		Transformer-auto		Appelez-nous	-
015	M0251028		Screw, T.c.		Appelez-nous	-
016	B5684121		Cut Out, Thermal				$ 9.17
016	M0229916		Screw T.c		Appelez-nous	-
017	M0308801		Cap, Protective-threaded (red)		Appelez-nous	-
018	WPM0104106		Clip   (Replaces: M0104106)				$ 7.00
019	12160602		Shield, Spill		Appelez-nous	-
020	M0275163		Tape Per Roll		Appelez-nous	-
021	M0253540		Screw-tc		Appelez-nous	-
022	D7681501		Triac				$ 44.05
022	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
023	10172901Q		Snubber Assembly		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
