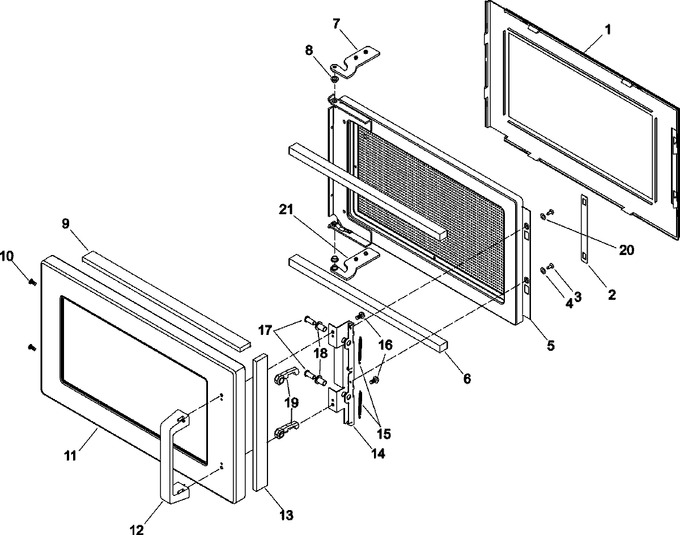

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | R0150148 | Assy,inner Doorxxx |
|
- | |||||
| 2 | 12526201 | Linkage, Dr Latch |
|
- | |||||
| 3 | M0230815 | Screw |
|
- | |||||
| 4 | M0274066 | Washer, Nylon |
|
- | |||||
| 5 | 12472204 | Door Ring Weld, E Ct |
|
- | |||||
| 6 | 10966601 | Gasket, Neoprene |
|
- | |||||
| 7 | 12126805 | Plate, Hinge (upper) |
|
- | |||||
| 8 | 5210001001 | Bushing, Nylon |
|
$ 5.44 | |||||
| 9 | 12210804 | Energy, Strip |
|
- | |||||
| 10 | W11233072 | Screw, Tc (Replaces: M0230518) |
|
Immediately | $ 12.62 | ||||
| 11 | R9900566 | Door Kit(solid Door Units) |
|
- | |||||
| 12 | 12133901 | Handle-door |
|
- | |||||
| 13 | 12210803 | Energy, Strip |
|
- | |||||
| 14 | 12114401 | Brkt-door Latch |
|
- | |||||
| 15 | C8893502 | Spring, Door Latch |
|
- | |||||
| 16 | WP489128 | Screw (Replaces: M0253516) |
|
$ 9.79 | |||||
| 17 | 12127001 | Pin-latch |
|
- | |||||
| 18 | M0800501 | Spacer |
|
- | |||||
| 19 | 12126901 | Latch-door |
|
$ 7.32 | |||||
| 20 | M0272503 | Washer |
|
- | |||||
| 21 | 12126806 | Plate, Hinge (lower) |
|
- |
