Diagram # Part Number Description Series Availability Ships Price Add to Cart
001 R0150148 Assy,inner Doorxxx Appelez-nous -
002 12526201 Linkage, Dr Latch Appelez-nous -
003 M0230815 Screw Appelez-nous -
004 M0274066 Washer, Nylon Appelez-nous -
005 12472204 Door Ring Weld, E Ct Appelez-nous -
006 10966601 Gasket, Neoprene Appelez-nous -
007 12126805 Plate, Hinge (upper) Appelez-nous -
008 5210001001 Bushing, Nylon Special Order $ 5.44

009 12210804 Energy, Strip Appelez-nous -
010 W11233072 Screw, Tc   (Replaces: M0230518) In-Stock Immediately $ 12.62

011 59002073 Assy, Outer Door (hdc21rb2) Appelez-nous -
012 12133901 Handle-door Appelez-nous -
013 12210803 Energy, Strip Appelez-nous -
014 12114401 Brkt-door Latch Appelez-nous -
015 C8893502 Spring, Door Latch Appelez-nous -
016 WP489128 Screw   (Replaces: M0253516) Special Order $ 9.79

017 12127001 Pin-latch Appelez-nous -
018 M0800501 Spacer Appelez-nous -
019 12126901 Latch-door Special Order $ 7.32

020 M0272503 Washer Appelez-nous -
021 12126806 Plate, Hinge (lower) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

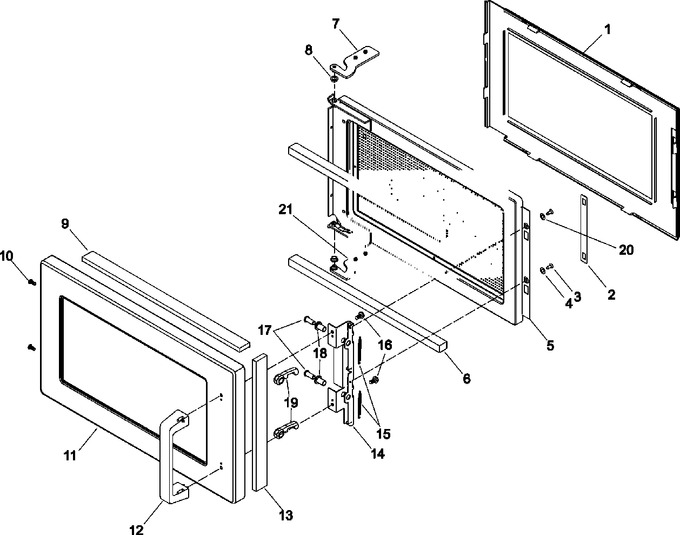

Diagram for HDC21RB2 (BOM P1331208M)
