SELECT A DIAGRAM

01 - Tray, Grease Shield, Cabinet,


02 - Door


03 - Fuses, Antennas, Blower, Ducts, Cavity


04 - Electrical Components


05 - Supplemental Information


06 - Wiring Information

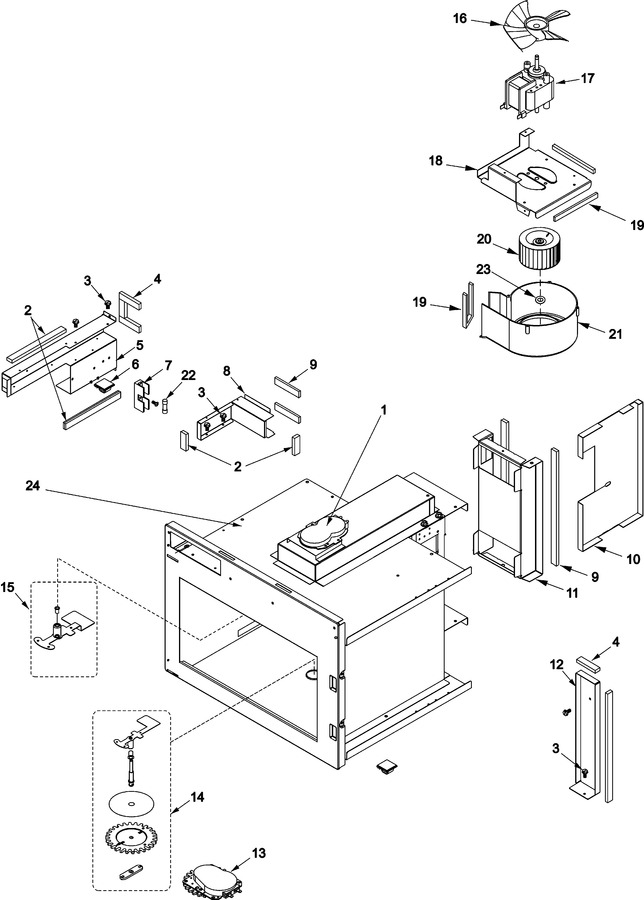

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	R0150197		Motor-stirrer (230v)		Appelez-nous	-
002	M0275058		Tape, Foam		Appelez-nous	-
003	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
004	A3030302		Gasket		Appelez-nous	-
005	12135604		Duct,cav Exh-e Ct		Appelez-nous	-
006	WPM0104106		Clip   (Replaces: M0104106)				$ 7.00
007	10091101		Fuse Holder		Appelez-nous	-
007	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
008	12135704		Assy, Exhaust Duct Kit		Appelez-nous	-
009	10966607		Gasket, Neoprene (1 Roll)		Appelez-nous	-
010	12134101		Divider-flow		Appelez-nous	-
011	59001558		Duct-mag Outlet		Appelez-nous	-
012	12525701		Barrier, Air		Appelez-nous	-
013	R9900668		Kit,antenna Motor(230v)				$ 73.63
014	R9900585		Kit,antenna(bottom)				$ 95.02
015	R0150185		Assy, Ant/retainer		Appelez-nous	-
016	B5706704		Fan Blade				$ 8.23
017	12138105		Blower Motor		Appelez-nous	-
018	12271103		Brkt, Blower Mtg		Appelez-nous	-
019	A3030303		Gasket (per Foot)		Appelez-nous	-
020	12138201		Wheel-blower				$ 10.37
021	12138302		Scroll-blower		Appelez-nous	-
022	M0805303		Fuse, 20 Amp				$ 30.56
023	M0118901		Clip		Appelez-nous	-
024	12002678		Cavity Kit- Hdc18, 21 Kit Includes Tray, Antennas		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
