Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 R0150197 Motor-stirrer (230v) Appelez-nous -
2 M0275058 Tape, Foam Appelez-nous -
3 WP489349 Screw   (Replaces: M0216515) In-Stock Immediately $ 7.09

4 A3030302 Gasket Appelez-nous -
5 R9900126 Assy, Exhaust Duct Kit Appelez-nous -
6 WPM0104106 Clip   (Replaces: M0104106) Special Order $ 7.00

7 12173001 Filter Line Appelez-nous -
8 12135704 Assy, Exhaust Duct Kit Appelez-nous -
9 10966607 Gasket, Neoprene (1 Roll) Appelez-nous -
10 12134101 Divider-flow Appelez-nous -
11 59001558 Duct-mag Outlet Appelez-nous -
12 12525701 Barrier, Air Appelez-nous -
13 R9900668 Kit,antenna Motor(230v) Special Order $ 73.63

14 R9900585 Kit,antenna(bottom) Special Order $ 95.02

15 R0150185 Assy, Ant/retainer Appelez-nous -
16 B5706704 Fan Blade Special Order $ 8.23

17 12138105 Blower Motor Appelez-nous -
18 12271103 Brkt, Blower Mtg Appelez-nous -
19 A3030303 Gasket (per Foot) Appelez-nous -
20 12138201 Wheel-blower Special Order $ 10.37

21 12138302 Scroll-blower Appelez-nous -
22 A4539618 .156 Pop Rivet Appelez-nous -
23 10091101 Fuse Holder Appelez-nous -
23 WP489349 Screw   (Replaces: M0216515) In-Stock Immediately $ 7.09

24 M0805203 Fuse,20 Amp Appelez-nous -
25 M0118901 Clip Appelez-nous -
26 12002678 Cavity Kit- Hdc18, 21 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

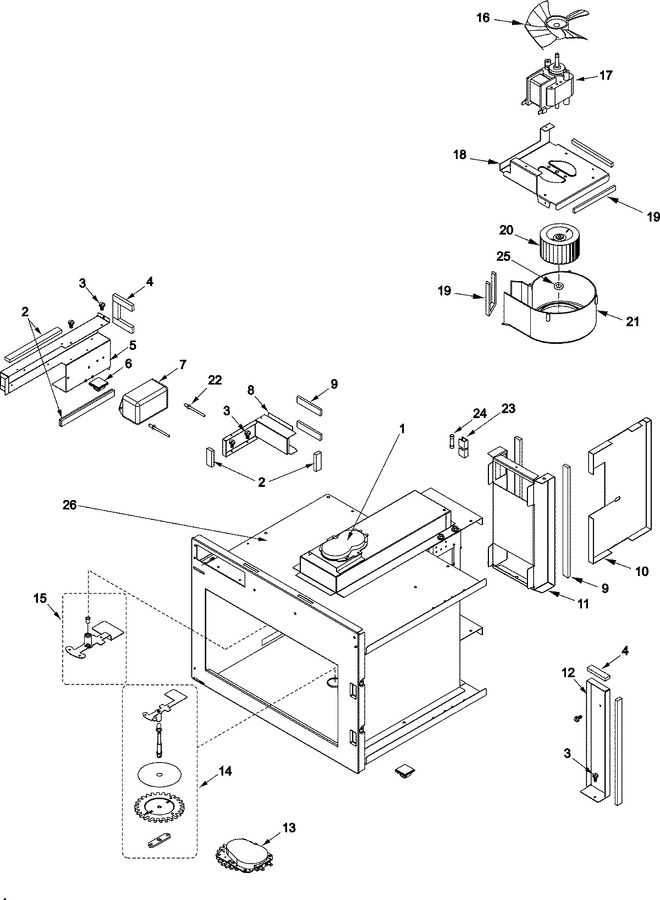

Diagram for HDC514 (BOM: P1330514M)
