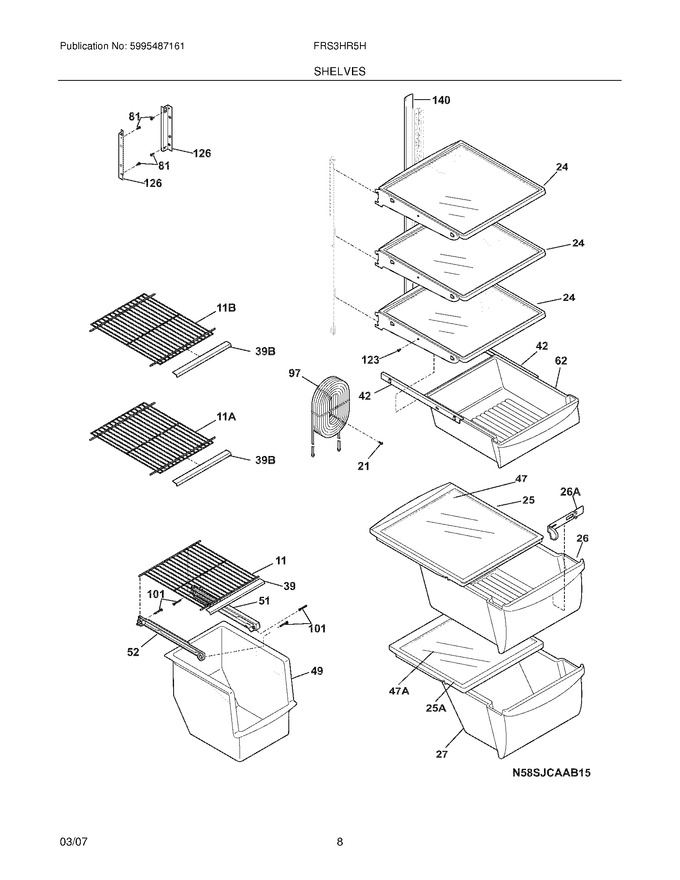

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Freezer Door
05 - Refrigerator Door
07 - Cabinet
09 - Shelves
11 - Controls
13 - System
15 - Ice & Water Dispenser
17 - Ice Container
19 - Ice Maker
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 241657601 | Shelf,flip Up ,wire |
|
$ 79.48 | |||||
| 21 | 218843801 | Screw,hx Wshr Hd Sems ,8-15a X 0.625 ,21 (Replaces: 5304455658) |
|
$ 14.41 | |||||
| 24 | 240355211 | Shelf-``spill-safe``,fixed |
|
$ 224.07 | |||||
| 25 | 240354502 | Cover-crisper Pan,upper |
|
Immediately | $ 100.02 | ||||
| 26 | 240354723 | Pan-crisper,upper (Replaces: 240354705) |
|
Immediately | $ 164.31 | ||||
| 27 | 240354805 | Pan-crisper,lower (Replaces: 240354807) |
|
$ 167.69 | |||||
| 39 | 240430705 | Trim-shelf,front |
|
$ 60.43 | |||||
| 42 | 240365401 | Track,meat Pan Hanger ,lh |
|
Immediately | $ 51.26 | ||||
| 42 | 240356501 | Track,meat Pan Hanger ,rh |
|
Immediately | $ 56.70 | ||||
| 47 | 240350613 | Insert-pan Cover,glass (Replaces: 240350635) |
|
$ 123.62 | |||||
| 49 | 240564301 | Basket-sliding |
|
$ 131.97 | |||||
| 51 | 240343002 | Hanger-basket,rh |
|
$ 65.22 | |||||
| 52 | 240343102 | Hanger-basket,lh |
|
$ 69.77 | |||||
| 62 | 240355527 | Pan-meat (Replaces: 240355506) |
|
$ 184.06 | |||||
| 81 | 5304455650 | Screw,hex Washer Head ,8-15a X 0.625 ,low Profile |
|
$ 14.18 | |||||
| 97 | 240545302 | Water Tank Assy,coiled Tubing ,rear Filter |
|
$ 280.67 | |||||
| 101 | 218493101 | Screw,hex Washer Head ,8-18ab X 1-3/4 |
|
$ 13.46 | |||||
| 123 | 215005101 | Screw,hanger/rlr Mtg ,8-10 X 7/16 |
|
$ 14.89 | |||||
| 126 | 241674401 | Channel,auger Mtg ,lh |
|
$ 47.48 | |||||
| 126 | 241674402 | Channel,auger Mtg ,rh |
|
$ 43.24 | |||||
| 140 | 240430501 | Channel,wtr Tube Cover |
|
$ 97.81 | |||||
| 11A | 5304532465 | Shelf,fixed ,freezer (Replaces: 241657501) |
|
$ 54.10 | |||||
| 11B | 5304532464 | Shelf,fixed Upper ,freezer (Replaces: 241657503) |
|
- | |||||
| 25A | 240354602 | Cover-crisper Pan,lower |
|
Immediately | $ 88.46 | ||||
| 26A | 240351101 | Control-humidity |
|
Immediately | $ 43.95 | ||||
| 39B | 240430701 | Trim-shelf,front |
|
$ 69.30 | |||||
| 47A | 240350614 | Insert-pan Cover,glass |
|
$ 145.60 | |||||
| NI | 240349801 | Clip-slide,pan-crisper |
|
$ 20.48 | |||||
| NI | 240362101 | Clip-slide,cover-crisper |
|
$ 47.03 | |||||
| NI | 241768105 | Energy Guide |
|
- |
