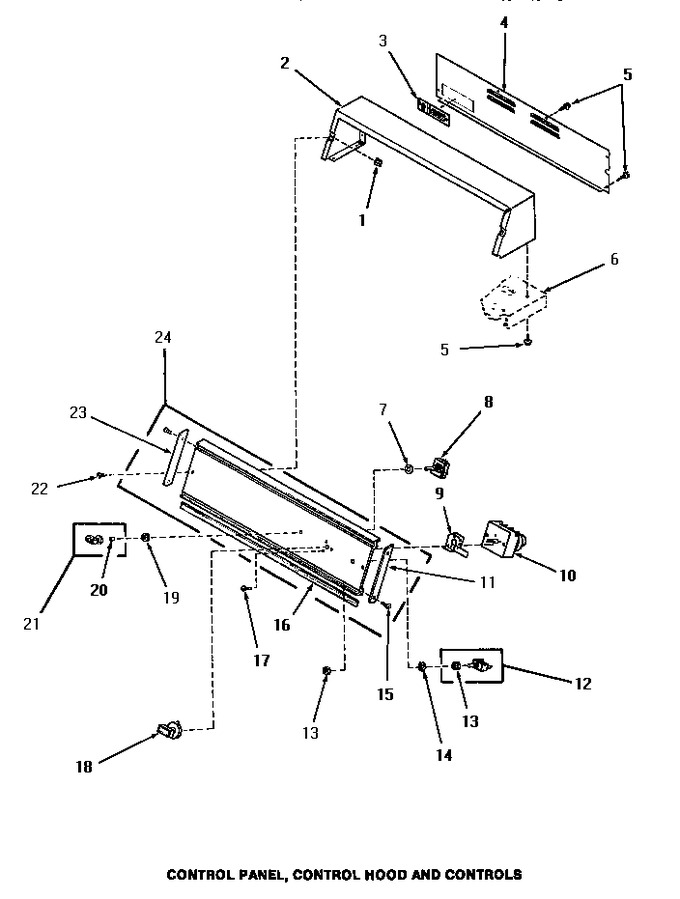

03 - Control Panel, Control Hood & Controls


04 - Dryer Belts


05 - Fr Blkhd, Air Duct, Felt Seal & Cylinder


06 - Heater Box


07 - Loading Door, Front Panel & Seals


08 - Motor, Exhaust Fan & Belt


09 - Power Cord & Terminals


10 - Rear Blkhd, Felt Seal & Cylinder Roller


11 - Terminal Block


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	54038		Nut,speed U-type		Appelez-nous	-
2	56169H		Control Hood, Harvest Gold		Appelez-nous	-
2	56169W		Control Hood, White		Appelez-nous	-
3	24903		Sticker,disconnect Pow		Appelez-nous	-
4	56168		Control Hood Rear Cover		Appelez-nous	-
5	55985		Screw,8b-18 X 3/8 Ind		Appelez-nous	-
6	Y00000000		See Note Cabinet Top		Appelez-nous	-
7	91176		Lockwasher,3/8 Intshkp				$ 1.44
9	26952		Spacer		Appelez-nous	-
10	52594		Timer		Appelez-nous	-
11	25073		End Cap, Right				$ 38.89
12	55882		Assy, Switch			Immediately	$ 61.79
13	Sub. To D513506		Nut,hex 15/32-32   (Replaces: 52947)		Appelez-nous	-
14	25820		Lockwasher,1/2 Int Shk		Appelez-nous	-
15	Sub. To D512973		Screw, 8b-16x5/8 Tap   (Replaces: 52864)		Appelez-nous	-
16	56203		Gasket		Appelez-nous	-
17	Y0054441		Nameplate, Handle		Appelez-nous	-
18	0056353		Screw		Appelez-nous	-
19	24205		Nut,knurled 3/8-24				$ 244.00
20	10519		Retainer		Appelez-nous	-
21	24291		Assy,knob		Appelez-nous	-
22	25232		Screw,8ab-18x7/8 Oval		Appelez-nous	-
23	25072		End Cap, Left				$ 32.09
24	56200		Control Panel Assembly		Appelez-nous	-
