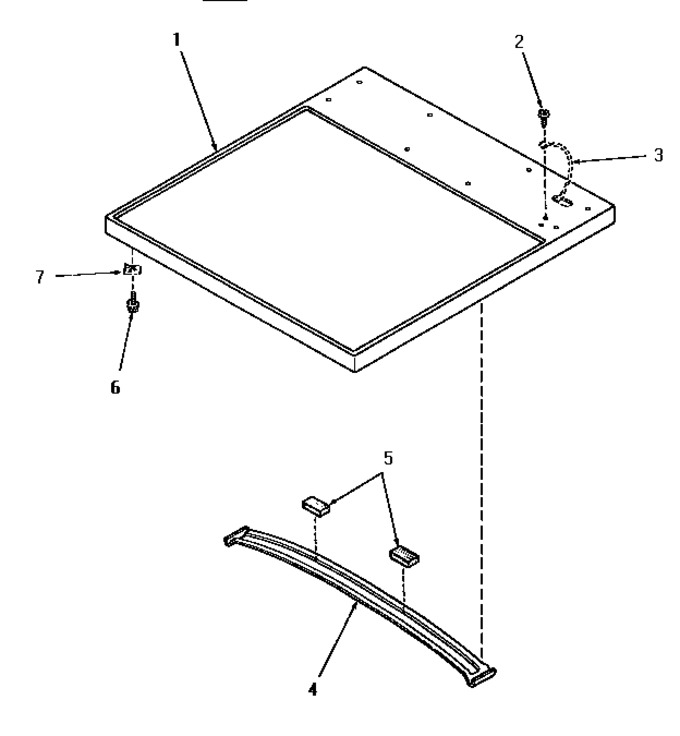

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	57066H		Assy,top Panel-domesti		Appelez-nous	-
1	57066W		Assy,top Panel-domestixreplace		Appelez-nous	-
1	57066L		Assy,top Panel-domesti		Appelez-nous	-
1	57066K		Cabinet Top, Coffee		Appelez-nous	-
1	57066A		Cabonet Top, Avocado		Appelez-nous	-
2	51784		Screw,10b-16 X 1/2 Hex		Appelez-nous	-
3	Y00000000		See Note Ground Wire, Green		Appelez-nous	-
4	56213		Top Brace		Appelez-nous	-
5	56968		Pad,felt-adhesive Back		Appelez-nous	-
6	23008		Screw,10-24 X 3/4 Sems				$ 6.95
7	20249		Nut,speed 10-24		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
