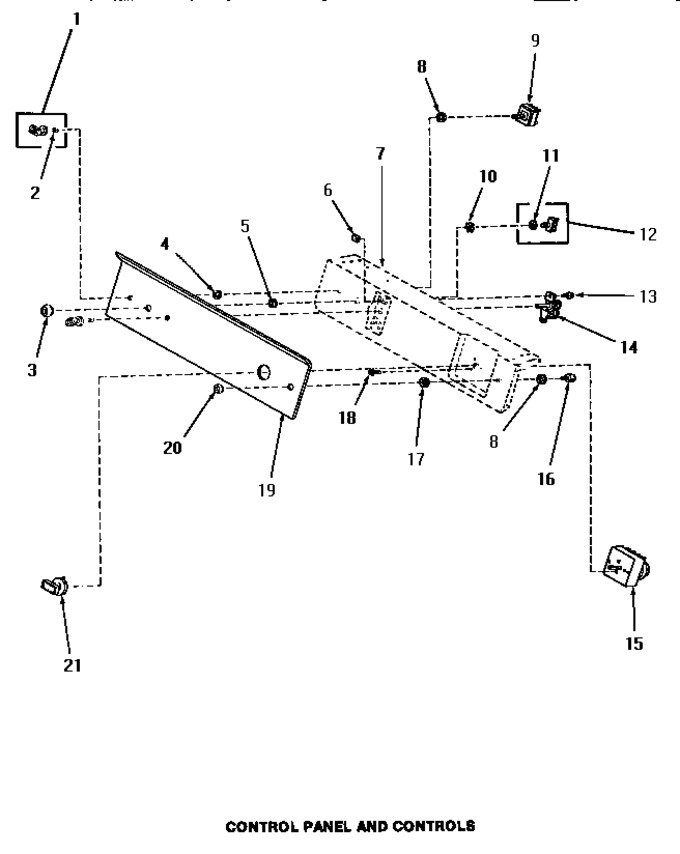

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 27379 | Assy,knob-switch |
|
- | |||||
| 2 | 10519 | Retainer |
|
- | |||||
| 3 | 23130 | Switch Collar |
|
- | |||||
| 4 | 24391 | Knurled Nut |
|
- | |||||
| 5 | 23406 | Knurled Nut |
|
- | |||||
| 6 | 24522 | Nut,speed-8ab-18 C1995 |
|
- | |||||
| 7 | Y00000000 | See Note Panel Support Plate |
|
- | |||||
| 8 | 91176 | Lockwasher,3/8 Intshkp |
|
$ 1.44 | |||||
| 9 | 52623 | Switch,fabric Selector |
|
- | |||||
| 10 | 25820 | Lockwasher,1/2 Int Shk |
|
- | |||||
| 11 | Sub. To D513506 | Nut,hex 15/32-32 (Replaces: 52947) |
|
- | |||||
| 12 | 55878 | Assy, Switch |
|
- | |||||
| 13 | 55985 | Screw,8b-18 X 3/8 Ind |
|
- | |||||
| 14 | 53516 | Buzzer |
|
- | |||||
| 15 | 56260 | Timer |
|
- | |||||
| 16 | 23401 | Switch |
|
- | |||||
| 17 | 23400 | Ferrule |
|
- | |||||
| 18 | 70212 | Screw,8-32 X 5/32 Rd H |
|
- | |||||
| 19 | 56495 | Control Panel |
|
- | |||||
| 20 | 23399 | Switch Collar |
|
- | |||||
| 21 | 56508 | Assy,knob-timer |
|
- |
