SELECT A DIAGRAM

01 - 56225 Gas Valve Assy


02 - Cabinet Top


03 - Cabinet, Exhaust Duct & Base


04 - Control Panel, Control Hood & Controls


05 - Dryer Belts


06 - Fr Blkhd, Air Duct, Felt Seal & Cylinder


07 - Gas Valve, Ign, Term & Gas Conv Kits


08 - Gas Valve, Igniter & Gas Conversion Kits


09 - Heater Box


10 - Igniter (change)


11 - Loading Door, Front Panel & Seals


12 - Motor, Exhaust Fan & Belt


13 - Power Cord & Terminals


14 - Rear Blkhd, Felt Seal & Cylinder Roller


15 - Terminal Block

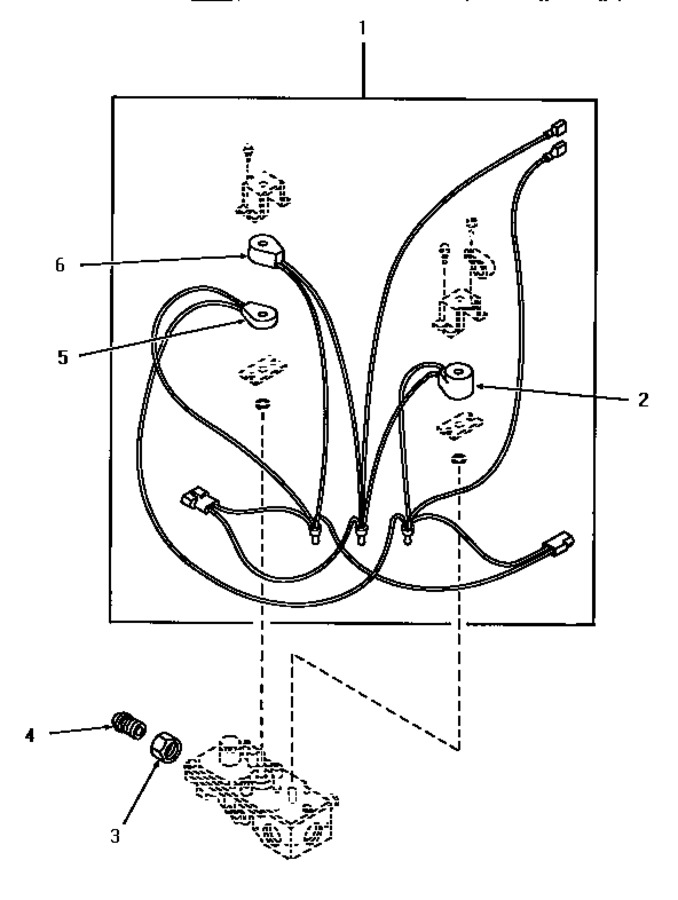

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	56225A		Kit,coil				$ 289.16
2	56225D		Coil,secondary				$ 55.15
3	56281		Nut,union		Appelez-nous	-
4	56282		Nipple		Appelez-nous	-
5	56225C		Coil,booster				$ 52.67
6	56225B		Coil,holding				$ 73.32
NI	56225		Gas Valve Assembly		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
