01 - 56225 Gas Valve Assy


02 - Cabinet Top


03 - Cabinet, Exhaust Duct & Base


04 - Control Hood


05 - Control Panel & Controls


06 - Dryer Belts


07 - Fr Blkhd, Air Duct, Felt Seal & Cylinder


08 - Gas Valve, Ign, Term & Gas Conv Kits


09 - Gas Valve, Igniter & Gas Conversion Kits


10 - Heater Box


11 - Igniter (change)


12 - Loading Door, Front Panel & Seals


13 - Motor, Exhaust Fan & Belt


14 - Power Cord & Terminals


15 - Rear Blkhd, Felt Seal & Cylinder Roller


16 - Terminal Block

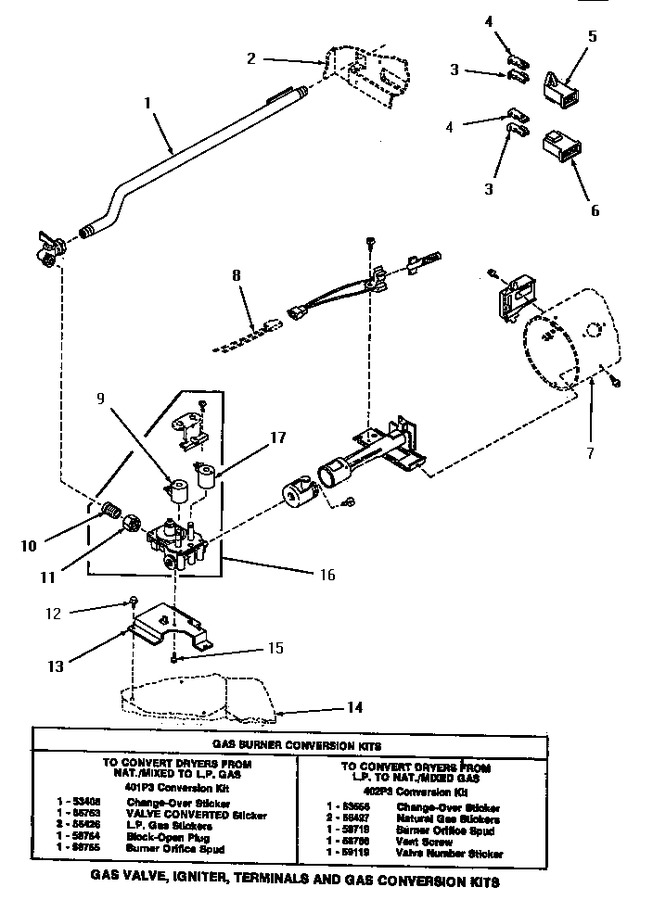

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	58911		Assy,lead-in Pipe		Appelez-nous	-
2	Y00000000		See Note Cabinet		Appelez-nous	-
3	Y00190		Connector,receptacle		Appelez-nous	-
4	Y00189		Terminal,spade		Appelez-nous	-
5	58799		Connector,2 Circuit		Appelez-nous	-
6	58800		Connector,3 Circuit				$ 2.09
7	Y00000000		See Note Burner Housing		Appelez-nous	-
8	Y00000000		See Note Wiring Harness		Appelez-nous	-
9	58804A		Booster & Holding Coil			Immediately	$ 28.02
10	56282		Nipple		Appelez-nous	-
11	Y58281		Nut		Appelez-nous	-
12	WP27001200		Hex Head Screw   (Replaces: 56264)				$ 6.91
13	58912		Mounting Bracket		Appelez-nous	-
14	Y00000000		See Note Base		Appelez-nous	-
15	WP489128		Screw, 8t-32x3/8 He   (Replaces: 56124)				$ 9.79
16	58804		Assy,valve-gas-single-		Appelez-nous	-
17	279834		Coil, Secondary   (Replaces: 58804B)			Immediately	$ 29.57
NI	53556		Sticker,conversion		Appelez-nous	-
NI	55753		Valve Converted Sticker		Appelez-nous	-
NI	Y56426		L.p. Gas Stickers		Appelez-nous	-
NI	COMM PART		Plug,block Open   (Replaces: 58754)		Appelez-nous	-
NI	58755		Orifice,lp		Appelez-nous	-
NI	58719		Orifice,screw		Appelez-nous	-
NI	COMM PART		Screw,vent   (Replaces: 58768)		Appelez-nous	-
NI	56427		Sticker		Appelez-nous	-
NI	59119		Label		Appelez-nous	-
NI	401P3		Kit, Conversion-lp			Immediately	$ 51.40
NI	402P3		Kit,conversion-ng				$ 56.93
NI	53408		Label,change-over		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
