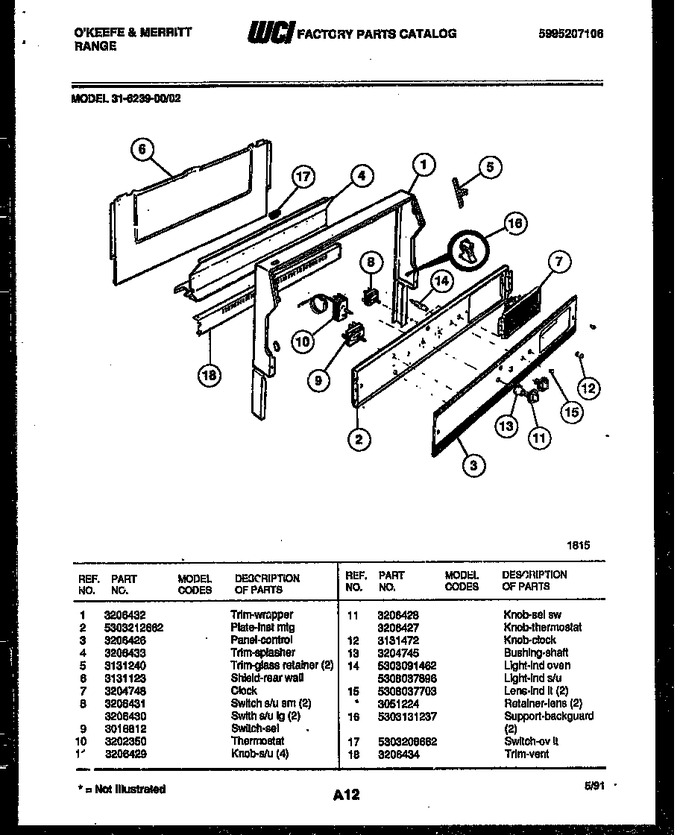

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3206432 | Trim-wrapper |
|
- | |||||
| 2 | 5303212662 | Plate - Inst Mtg |
|
- | |||||
| 3 | 3206426 | Panel-control |
|
- | |||||
| 4 | 3206433 | Trim-splasher |
|
- | |||||
| 5 | 3131240 | Trim-glass Retainer, (2) |
|
- | |||||
| 6 | 3131123 | Shield, Rear Wall |
|
- | |||||
| 7 | 3204748 | Clock |
|
- | |||||
| 8 | 3206431 | Switch S/u Sm. (2) |
|
- | |||||
| 9 | 3016812 | Switch-sel. |
|
- | |||||
| 10 | 3202350 | Thermostat |
|
- | |||||
| 11 | 3206428 | Knob-sel. Sw. |
|
- | |||||
| 11 | 3206429 | Knob-s/u (4) |
|
- | |||||
| 12 | 3131472 | Knob-clock |
|
- | |||||
| 13 | 3204745 | Bushing-shaft |
|
- | |||||
| 14 | 5303091462 | Light-ind Oven |
|
- | |||||
| 14 | 5308037896 | Indicator Light |
|
$ 39.75 | |||||
| 15 | 5308037703 | Lens-ind Lt (2) |
|
- | |||||
| 16 | 5303131237 | Support-backguard,(2) |
|
- | |||||
| 17 | 5303208662 | Switch-ov Lt |
|
- | |||||
| 18 | 3206434 | Trim-vent |
|
- | |||||
| 11A | 3206427 | Knob-thermostat |
|
- | |||||
| 15A | 3051224 | Retainer-lens (2) (non-illustrated) |
|
- | |||||
| 8A | 3206430 | Swith S/u Lg (2) |
|
- |
