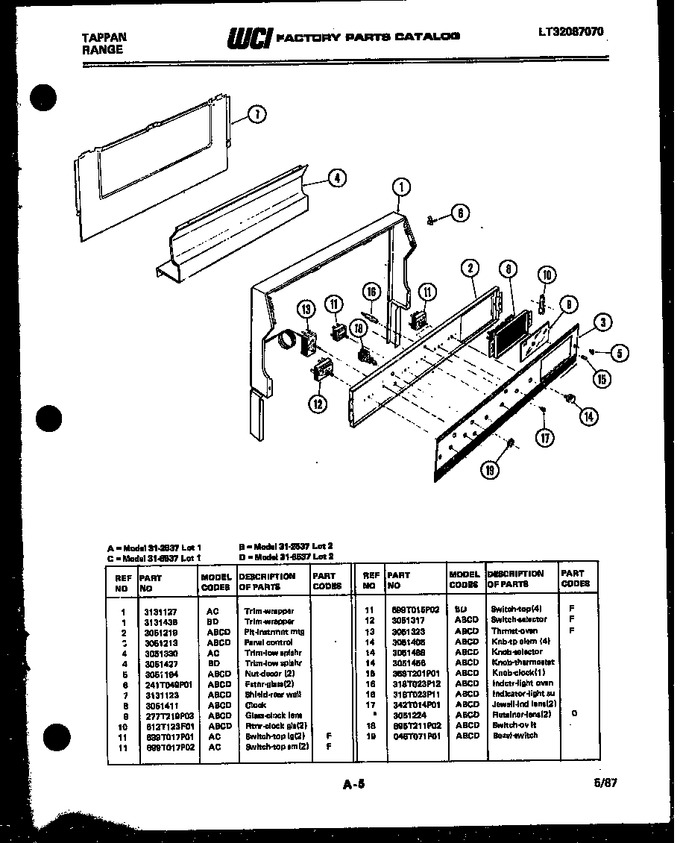

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3131436		Trim Wrapper		Appelez-nous	-
2	3051219		Plt-instrmnt Mtg		Appelez-nous	-
3	3051213		Panel-control		Appelez-nous	-
4	3051427		Trim-low Splshr		Appelez-nous	-
5	3051194		Nut - Decor (2)		Appelez-nous	-
6	241T049P01		Fstnr-glass(2)		Appelez-nous	-
7	3131123		Shield, Rear Wall		Appelez-nous	-
8	3051411		Clock		Appelez-nous	-
9	277T219P03		Glass-clock Lens		Appelez-nous	-
10	612T123F01		Rtnr-clock Gls(2)		Appelez-nous	-
11	699T015P02		Switch, Top (4)		Appelez-nous	-
12	3051317		Switch-selector		Appelez-nous	-
13	3051323		Thrmst-oven		Appelez-nous	-
14	3051488		Knob-selector		Appelez-nous	-
14	3051456		Knob, Thermostat		Appelez-nous	-
14	3051405		Knb-tp Elem (4)		Appelez-nous	-
15	358T201P01		Knob-clock (1)		Appelez-nous	-
16	318T023P11		Indicator-light Su		Appelez-nous	-
16	318T023P12		Indctr-light Oven		Appelez-nous	-
17	342T014P01		Jewell-ind Lens (2)		Appelez-nous	-
18	695T211P02		Switch-ov Lt		Appelez-nous	-
19	045T071P01		Bezel, Switch		Appelez-nous	-
17A	3051224		Retainer-lens (2) (non-illustrated)		Appelez-nous	-
