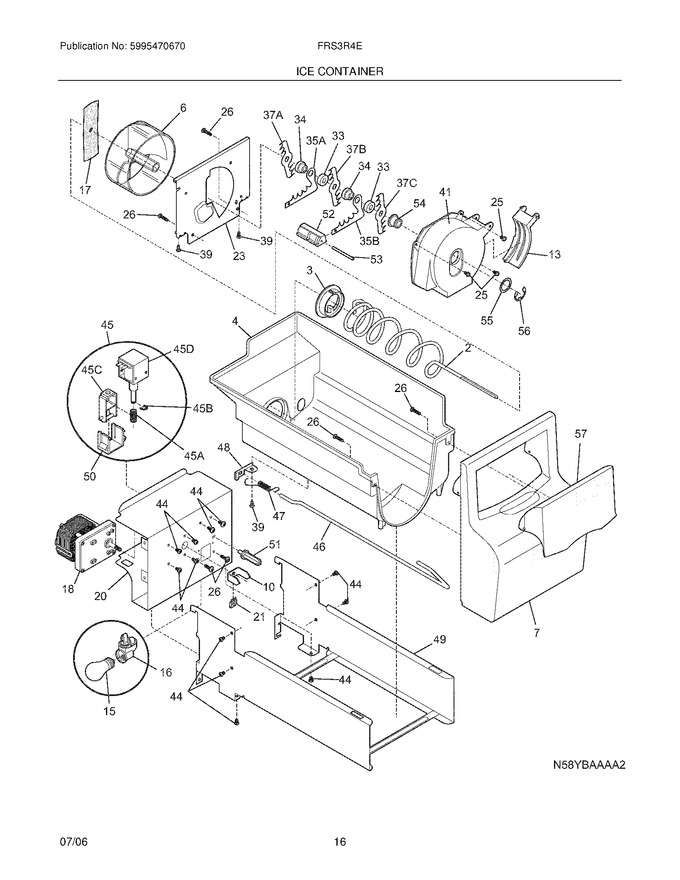

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	241716101		Auger-ice   (Replaces: 5304428402)				$ 117.32
3	241685201		Cam-drive   (Replaces: 5304404343)				$ 41.81
4	241734001		Container-ice,bucket Only   (Replaces: 218815300)				$ 105.61
6	241685101		Drum-ice Disp   (Replaces: 5304404346)				$ 51.74
7	241734201		Front-ice Container   (Replaces: 218815400)				$ 87.04
10	241726501		Bar-drive   (Replaces: 241624801)				$ 58.82
13	241885001		Gate   (Replaces: 5304404359)				$ 75.83
15	316538904		Light Bulb   (Replaces: 241555401)			Immediately	$ 20.48
16	241559801		Socket-light				$ 72.68
17	241684503		Drive Blade   (Replaces: 5304404345)				$ 17.44
18	5304462594		Motor-auger   (Replaces: 5304447433)				$ 314.22
20	5304404332		Cover-motor		Appelez-nous	-
21	241726501		Nut-drive   (Replaces: 215285100)				$ 58.82
23	241684001		Plate-front   (Replaces: 5304404347)				$ 149.54
25	240555002		Screw,hex Washer Head ,8-32t X 0.375   (Replaces: 5304404362)			Immediately	$ 13.46
26	5304455680		Screw,plask ,4-14 X 3/8				$ 13.47
33	241684802		Spacer   (Replaces: 5304404351)				$ 9.10
34	5304404349		Spacer		Appelez-nous	-
39	241690501		Screw   (Replaces: 5304404365)				$ 16.30
41	241885001		Housing-crusher   (Replaces: 5304404358)				$ 75.83
44	218359200		Screw,pan Head ,8-32 X 0.250		Appelez-nous	-
46	5304404341		Control Rod		Appelez-nous	-
47	5304404342		Spring-control Rod		Appelez-nous	-
48	241684602		Bracket-control Rod   (Replaces: 5304404340)				$ 107.02
49	5304404880		Rail Assy		Appelez-nous	-
50	241675601		Guide-solenoid   (Replaces: 5304404334)				$ 80.09
51	5304404336		Rotation Stop		Appelez-nous	-
52	241684901		Spacer-fixed Blades   (Replaces: 5304404354)				$ 28.35
53	241690402		Pin-spiral,fixed Blades   (Replaces: 5304404355)				$ 19.13
54	241685001		Nut-auger   (Replaces: 5304404357)				$ 19.85
55	5304404360		Washer		Appelez-nous	-
56	241690201		E-ring   (Replaces: 5304404361)				$ 19.13
57	241734101		Door-access   (Replaces: 5304404363)				$ 50.61
35A	241684503		Fixed Blade,round   (Replaces: 5304404353)				$ 17.44
35B	241684203		Fixed Blade,square   (Replaces: 5304404352)				$ 18.20
37A	241684107		Blade,crusher No.1   (Replaces: 5304404348)				$ 21.99
37B	241684108		Blade,crusher No.2   (Replaces: 5304404350)				$ 21.99
37C	241684109		Blade-crusher,no.3   (Replaces: 5304404356)				$ 21.99
45A	241675902		Spring-solenoid   (Replaces: 5304406816)				$ 6.38
45B	241676001		E-ring-solenoid   (Replaces: 5304406817)				$ 70.16
45C	241676101		Actuator-solenoid   (Replaces: 5304406818)				$ 64.49
45D	241675704		Solenoid   (Replaces: 5304406819)			Immediately	$ 65.71
F45	241675704		Solenoid Assy   (Replaces: 5304404333)			Immediately	$ 65.71
NI	240507202		Deflector-ice Container				$ 62.37
NI	5304404364		Screw-bracket				$ 15.59
NI	241860803		Ice Container Assy,w/moving Parts   (Replaces: 240323813)			Immediately	$ 202.69
NI	5304455843		Harness-wiring		Appelez-nous	-
