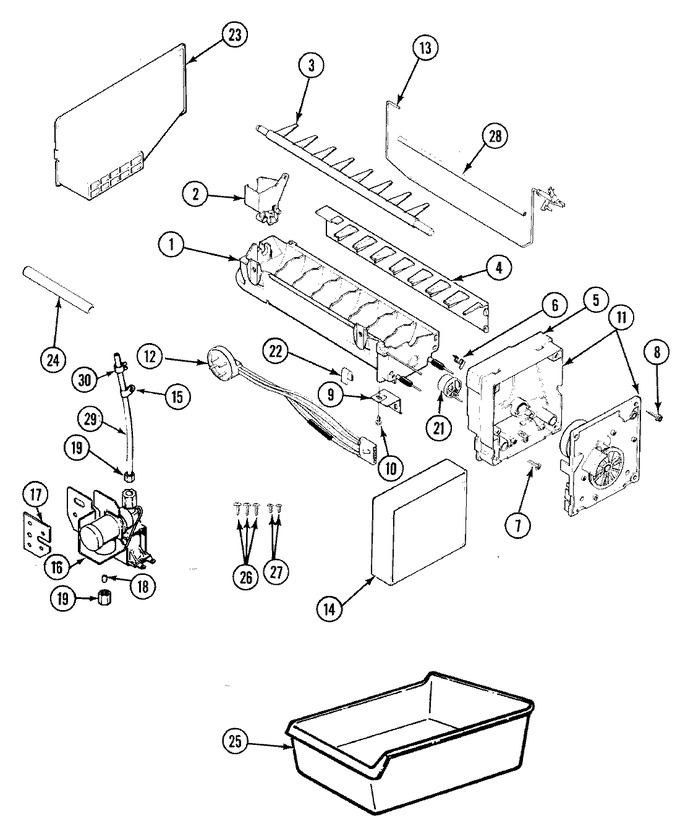

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | D7824706Q | Mold & Heater Assy. (Replaces: 95098-1) | 10 |
|
Immediately | $ 150.62 | |||
| 1 | 95099-1 | Grease, Silicone | 10 |
|
- | ||||
| 2 | WP628356 | Inlet, Water (Replaces: 95100-1) | 10 |
|
$ 46.07 | ||||
| 3 | WP627843 | Ejector, Ice (Replaces: 95101-1) | 10 |
|
$ 75.24 | ||||
| 4 | WP2182124 | Stripper, Ice (Replaces: 95102-1) | 10 |
|
$ 77.45 | ||||
| 5 | WP2195914 | Support, Module Housing (Replaces: 95103-1) | 10 |
|
$ 94.11 | ||||
| 6 | WP2315522 | Retainer, Thermostat (Replaces: 95104-1) | 10 |
|
$ 9.95 | ||||
| 7 | 95105-1 | Screw | 10 |
|
- | ||||
| 8 | WP681249 | Screw (Replaces: 95106-1) | 10 |
|
Immediately | $ 7.07 | |||
| 9 | WP2256087 | Bracket, Module & Heater (Replaces: 95107-1) | 10 |
|
$ 83.70 | ||||
| 10 | WP489128 | Screw, Bracket (Replaces: 95108-1) | 10 |
|
$ 9.79 | ||||
| 11 | D7824706Q | Module, Ice Maker (Replaces: 95109-1) | 10 |
|
Immediately | $ 150.62 | |||
| 11 | 95110-1 | Screw,motor To Module Assembly | 10 |
|
- | ||||
| 12 | 67910-2 | Wire Harness | 10 |
|
- | ||||
| 13 | 68112-1 | Arm, Sensor | 10 |
|
- | ||||
| 14 | 68328-2 | Cover, Ice Maker | 10 |
|
- | ||||
| 15 | WP488366 | Clamp, Feeder Tube (Replaces: 23197-8) | 10 |
|
$ 10.06 | ||||
| 16 | 4318047 | Valve, Water (Replaces: 60184-3) | 10 |
|
Immediately | $ 66.68 | |||
| 17 | 69363-1 | Bracket, Water Valve | 10 |
|
- | ||||
| 18 | WP487627 | Sleeve, Brass (Replaces: 69431-1) | 10 |
|
$ 10.05 | ||||
| 19 | WP245183 | Nut, Brass (1/4``) (Replaces: 69432-1) | 10 |
|
$ 7.01 | ||||
| 20 | W11233072 | Screw (Replaces: 400016-1) | 10 |
|
Immediately | $ 12.62 | |||
| 20 | W10833902 | Clamp, Tubing (Replaces: 53516-8) | 10 |
|
$ 9.89 | ||||
| 21 | 95093-1 | Cement, Alumilastic (4 Oz.) | 10 |
|
$ 49.64 | ||||
| 21 | WP627985 | Thermostat (Replaces: 95092-1) | 10 |
|
Immediately | $ 98.26 | |||
| 22 | WP628379 | Clamp, Wire Harness (Replaces: 68118-1) | 10 |
|
$ 9.51 | ||||
| 23 | 68255-1 | Air Duct | 10 |
|
- | ||||
| 24 | 67666-3 | Tube, Fill | 10 |
|
- | ||||
| 24 | 68306-1 | Tube, Fill | 10 |
|
- | ||||
| 25 | WP67001255 | Pan, Ice (Replaces: 68346-1) | 10 |
|
$ 182.77 | ||||
| 26 | W11772394 | Screw (Replaces: 400021-1) | 10 |
|
Immediately | $ 10.94 | |||
| 27 | WP250830 | Screw (Replaces: 401017-1) | 10 |
|
$ 7.16 | ||||
| 28 | 67556-1 | Sleeve, Sensor Arm | 10 |
|
- | ||||
| 29 | WPB5705307 | Tubing, Valve To Grommet (Replaces: 67579-6) | 10 |
|
$ 11.19 | ||||
| 30 | WPM0114003 | Clamp, Spring (Replaces: 60333-4) | 10 |
|
$ 9.95 |
